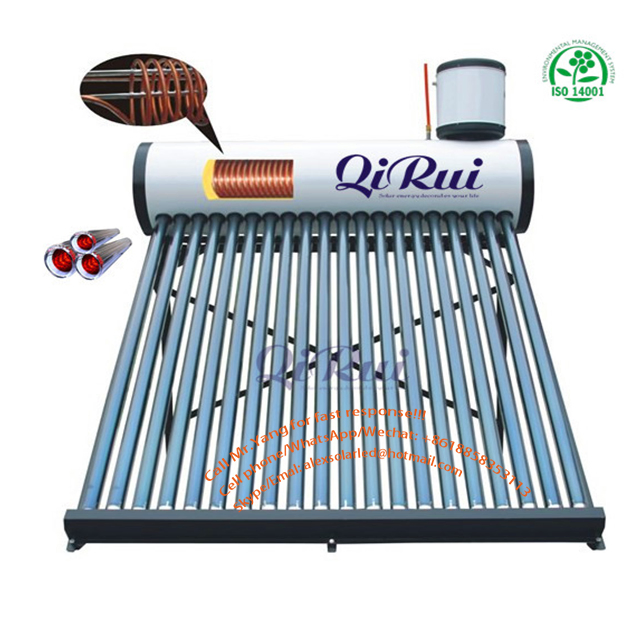

Rooftop Fresh Water Compact Pre-Heated Solar Hot Water Heater System

1 / 2

Rooftop Fresh Water Compact Pre-Heated Solar Hot Water Heater System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Model NO.

CPH-58

Structure

Compact Type

Pressure

Pressurized

Interior Material

Stainless Steel

Collector Components

Glass Vacuum Tube

Heat Preservation

72hours

Inner Tank Material

SUS304, SUS316

Copper Coil

Customized Length (24m-40m)

Outer Tank Material

Color Steel, Stainless Steel, Aluminium

Max Pressure

0.6 Mpa / 87psi

Production Capacity

4000sets/Month

Product Description

Fresh Water Evacuated Tube Solar Boiler Pre-heated Coil High Pressurized Solar Water Heater System

Quick Guidance

Free brand/LOGO print based on 20GP/40HQ quantity
1% free spare parts
Factory audited by SGS, TUV and BV
Delivery time: 12 days after deposit
Certificates: Europe Solar Keymark EN12976, CE, CCC, ISO9001, ISO14001, ISO45001

Working Principle

Mechanism of Pre-Heated Compact Pressurized Copper Coil Solar Water Heater:

Vacuum tube absorbs heat energy to heat the water in the storage tank.
Copper coil is installed in the water tank as the heat exchanger.
The water tank acts as a thermal source.
When water flows into the copper coil, it absorbs heat from the water in the tank.

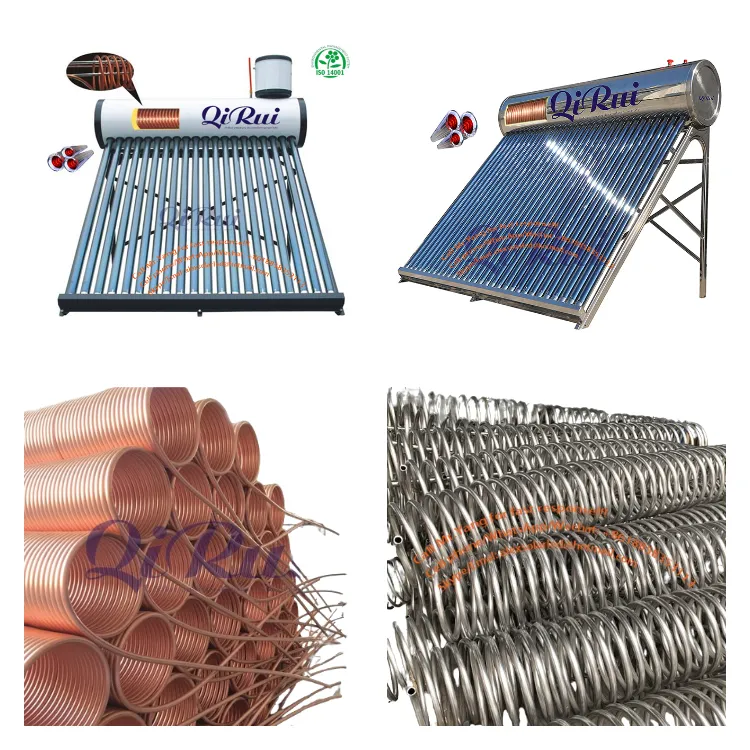

Detailed Photos

Key Features

Cost-effective and reliable high-pressure hot water solution.
Simple structure, designed for easy assembly and installation.
High resistance against wind, snow, and hailstones.
Fresh Water: Hot water comes from the heat exchanger, ensuring it's always fresh and clean.
Pressurized Performance: Delivers a more comfortable bathing experience.

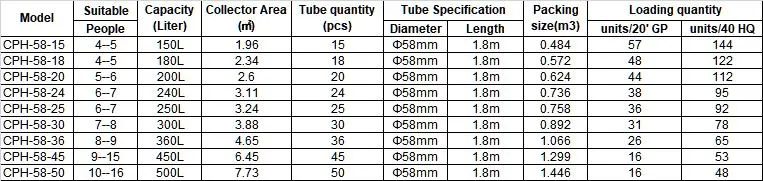

Product Parameters

Technical Specifications
CAPACITY (TUBES-LITER)	150liter - 500liter
Heat Exchanger	Copper coil or stainless steel coil
Outer Tank Material	0.4mm Galvanized Steel / SUS201 / SUS304-BA
Inner Tank Material	0.4mm SUS304-2B or SUS316 Stainless Steel
Insulating Layer	50/55mm High-density Polyurethane Foamed
Max Pressure	0.6 Mpa / 87psi / 6bar
Glass Tube Thickness	1.6mm
Absorption Rate	As = 0.93-0.96 (AM1.5)
Optional Components	Electrical heater (1500w-3000w), Intelligent Controller, Assistant Tank (3L-50L)

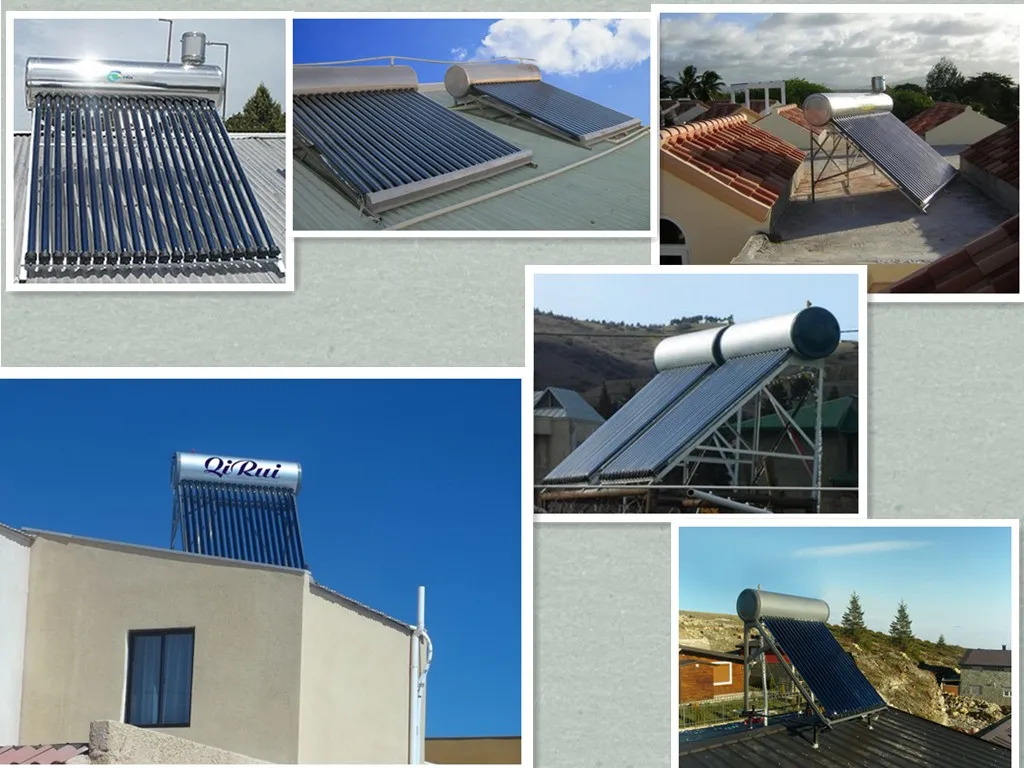

Installation Instructions

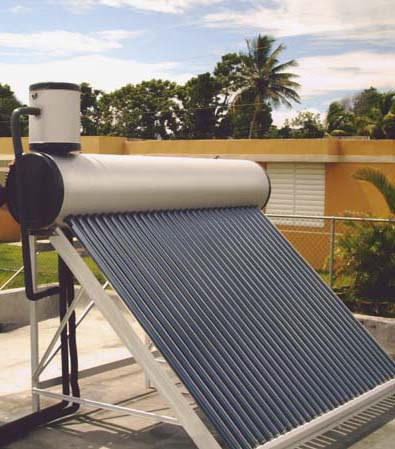

Suitable for both Flat Roof and Pitched Roof Applications

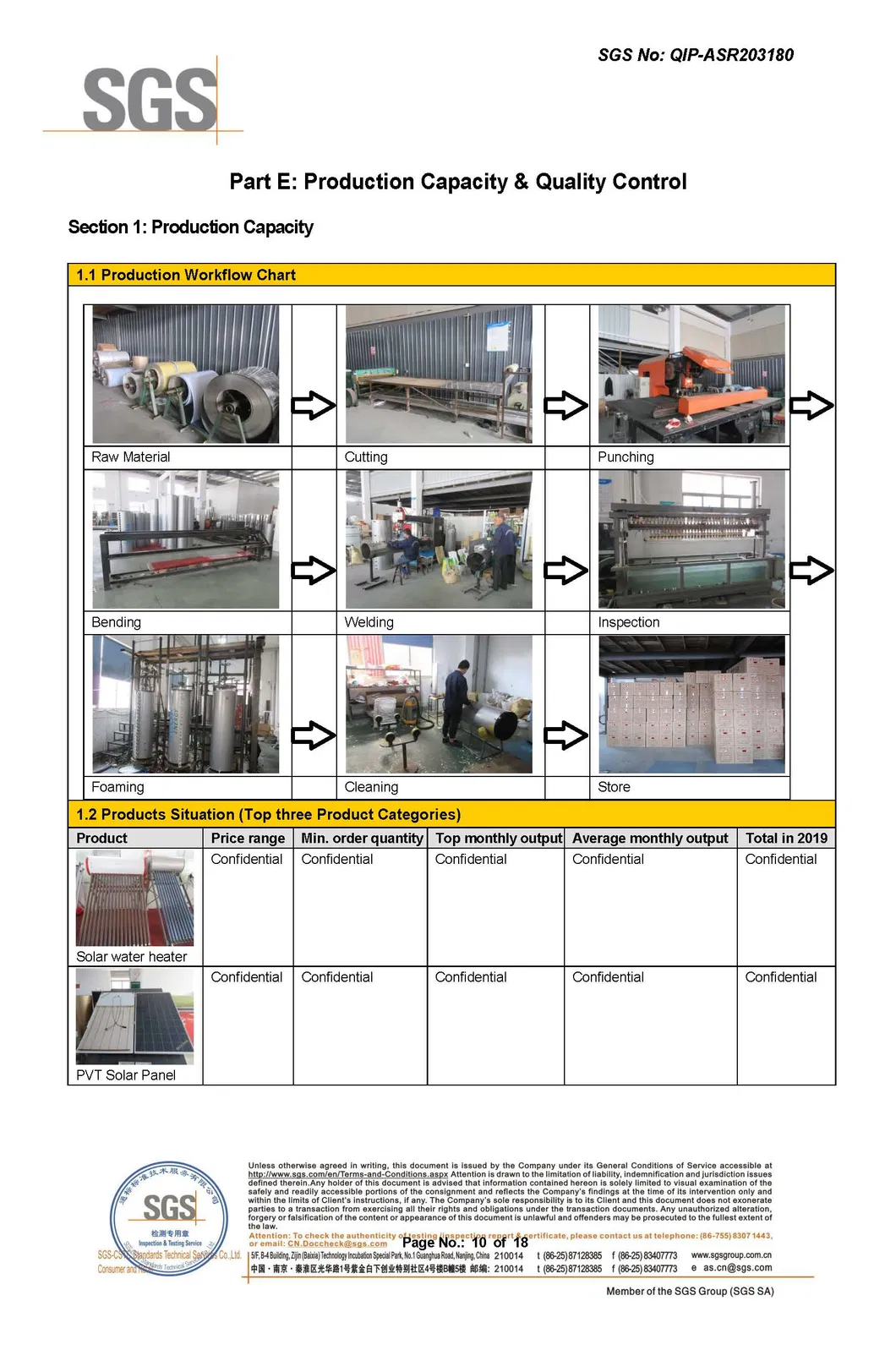

Quality Control & Service

Our Professional Services

Fast delivery: 40ft containers delivered within 7 days.
Experienced sales team for rapid technical support.
Customized designs tailored for different international markets.
Consolidated shipping support for additional solar components.
Comprehensive installation guides and training.

Frequently Asked Questions

1. Is solar water heating a viable alternative to gas or electricity?

Solar should be seen as a supplement. While it cannot totally replace gas or electric heating on low-sunlight days, a correctly sized system can provide 60%-70% of a household's hot water needs annually.

2. How long will it take to recoup my investment?

Depending on your location and usage, the cost may be recouped as quickly as 4-5 years through reduced utility bills. Solar hot water heaters offer considerable savings over their entire lifespan.

3. Can solar collectors be used in cold conditions?

Yes. These collectors can operate in temperatures as low as -30°C, though performance is naturally reduced in extreme cold. Good heat output is still maintained in mild sub-zero conditions.

4. What happens if one of the tubes is broken?

Tubes are durable but easily replaceable if damaged. The system can still operate with several broken tubes, though efficiency will decrease, so immediate replacement is recommended.

5. Will water be heated on a cloudy day?

Yes. Although output is reduced on overcast days, the collector still provides heating. Automated gas or electric boosting can maintain the required temperature during heavy rain or thick clouds.

6. How is the system protected during subzero temperatures?

The easiest method is using a controller with a low-temperature setting. When the manifold drops below 5°C, the pump circulates water from the bottom of the tank to warm the collector. In extremely cold regions, a closed-loop glycol mix may be used.
