Advanced Copper Evaporator for Beverage Coolers with CE Certification

1 / 5

Advanced Copper Evaporator for Beverage Coolers with CE Certification

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

● Product Overview

Model NO.

EVAPORATOR

Parts

Evaporator

Certification

Type

Evaporator

Function

Evaporator

Origin

China

HS Code

8418999990

Production Capacity

1,000,000,000 PCS/Year

● Product Description

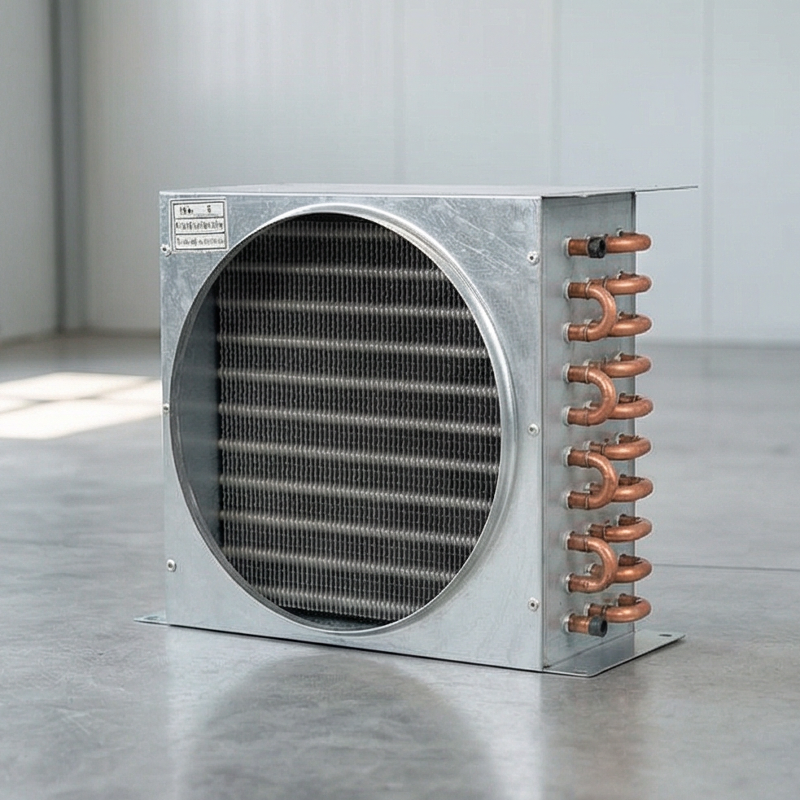

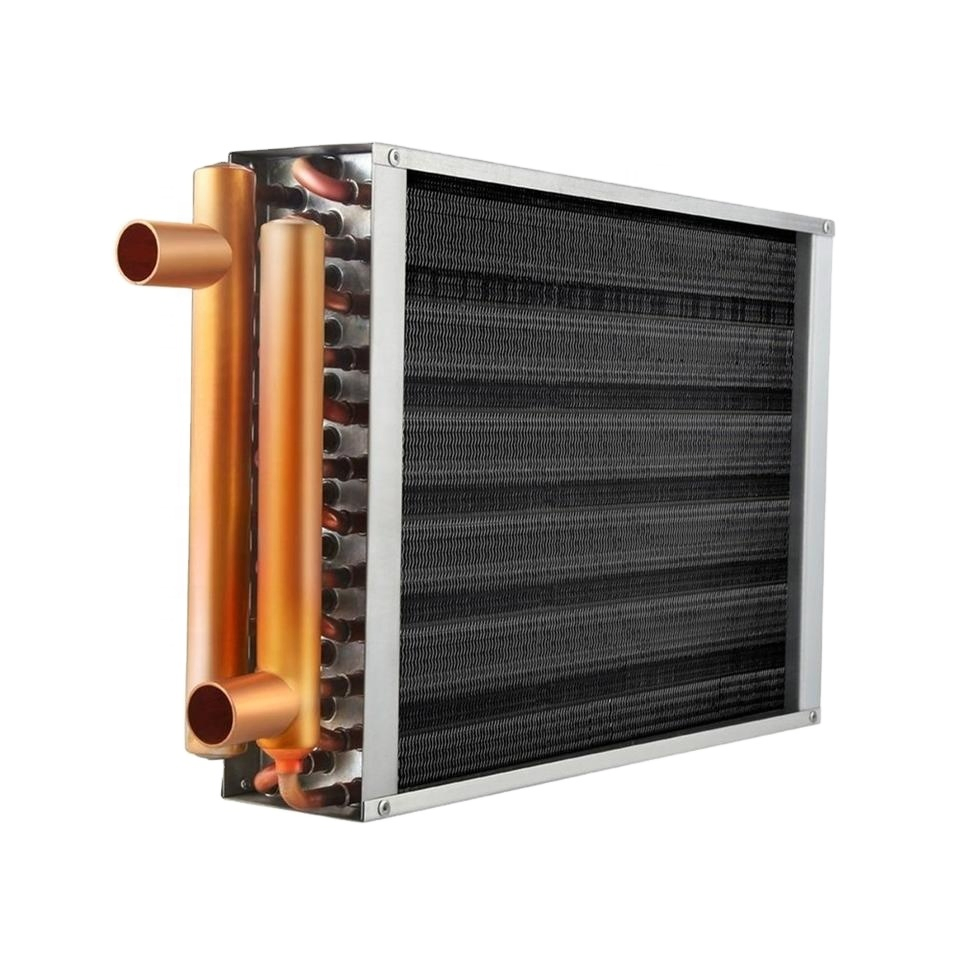

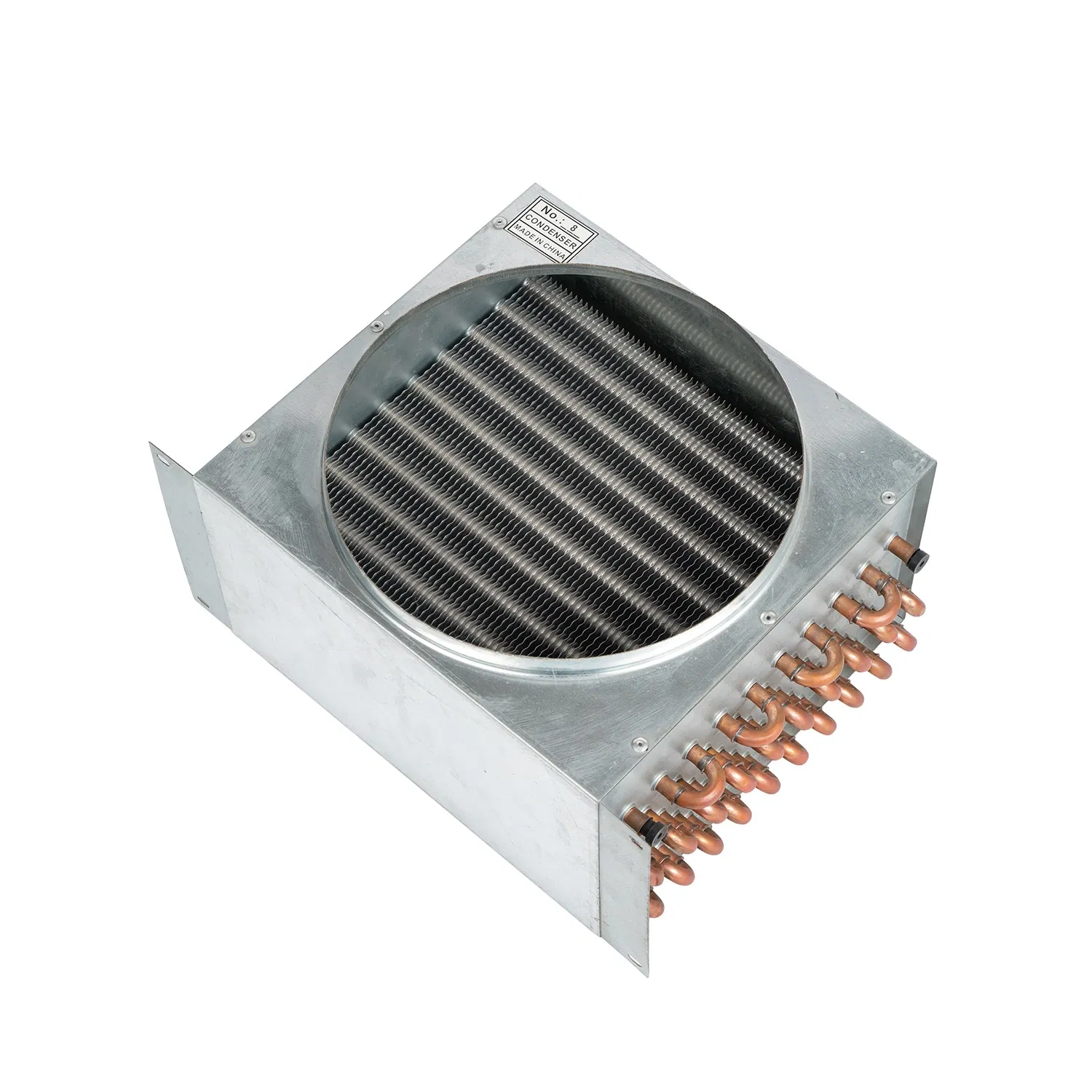

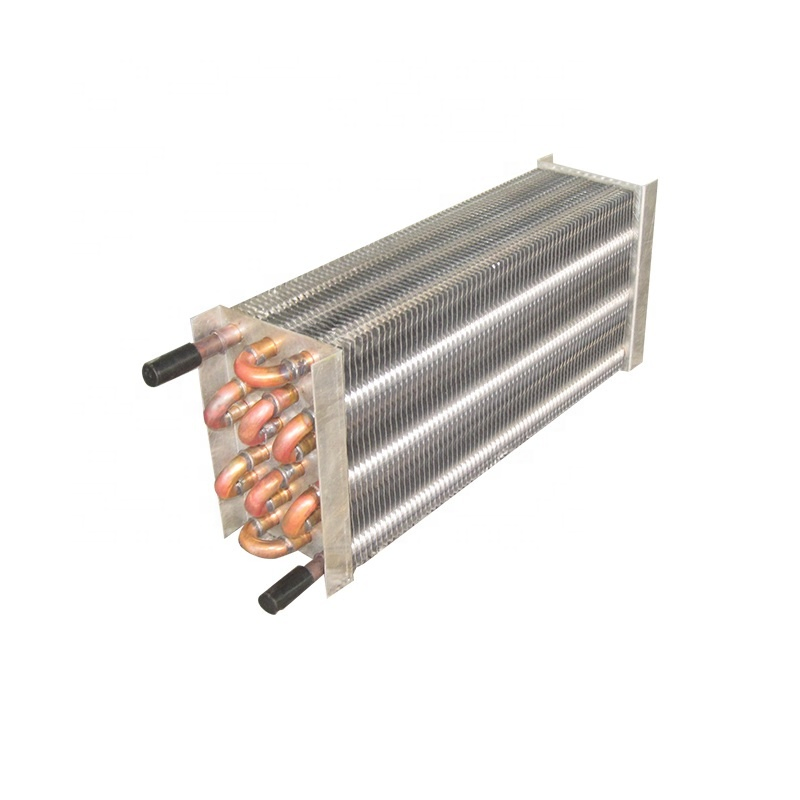

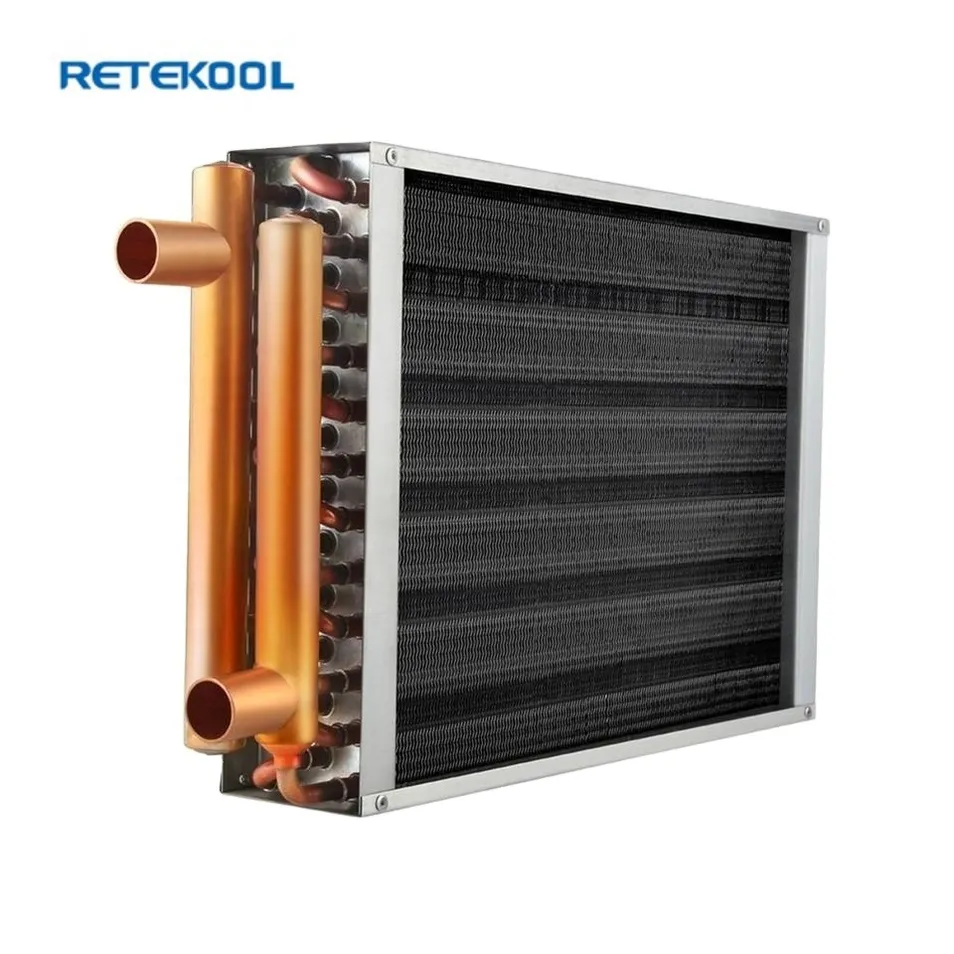

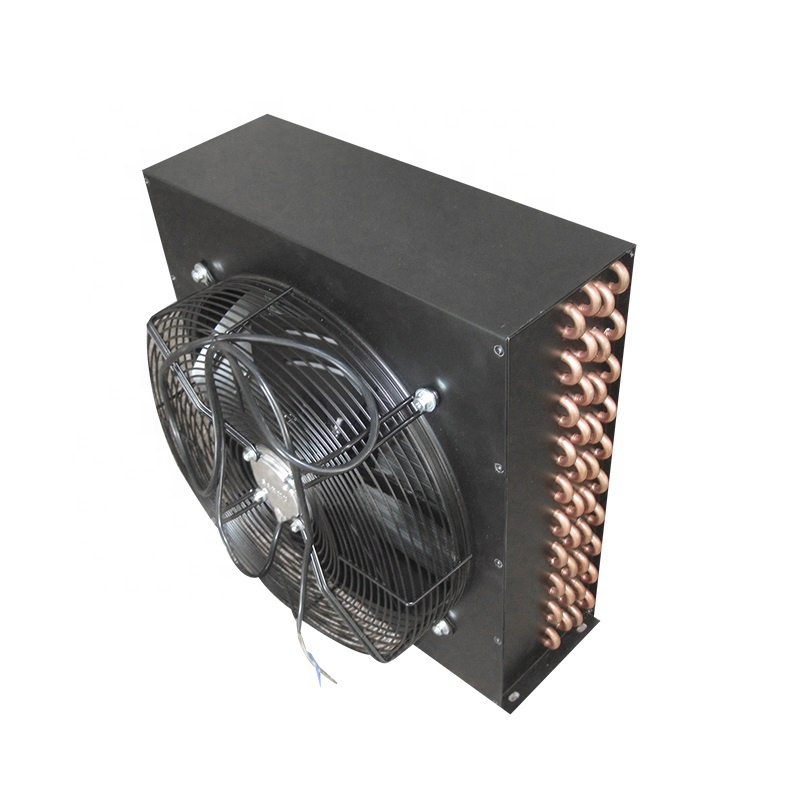

Advanced Copper Evaporator

These copper tube and aluminum fin evaporators are core components designed for commercial refrigeration equipment like cold rooms and display cases. Built with high-quality copper tubes, aluminum fins (hydrophilic or bare), and a galvanized/stainless steel frame, they ensure efficient heat transfer and durability.

Key features include customizable tube diameters (7.0/7.94/9.52mm), selectable fin types (Louver, Flat, Corrugated) with adjustable pitch (1.8-5.8mm). Every unit is guaranteed leak-proof through a strict 3.0 MPa nitrogen test and is compatible with common refrigerants (R134a, R404A, R407C).

Tube Diameter	Pitch	Fin Space	Array	Fin Surface	Edge Type	Defrost Heater
φ15.88mm	50×50mm	4-10mm	Equilateral Triangle	Sin-wave & Corrugated	Flat+Wave	With
φ12.7mm	31.75X27.5mm	3-9mm	Equilateral Triangle	Sin-wave & Corrugated	Flat+Wave	With
φ9.52mm	25X21.65mm	1.5-6mm	Equilateral Triangle	Sin-wave & Corrugated	Flat+Wave	With
φ7.94mm	25x21.65mm	1.5-3.5mm	Equilateral Triangle	Flat	Flat+Wave	Without
φ7.0mm	21×12.7mm	1.3-1.8mm	Equilateral Triangle	Louver	Flat	Without

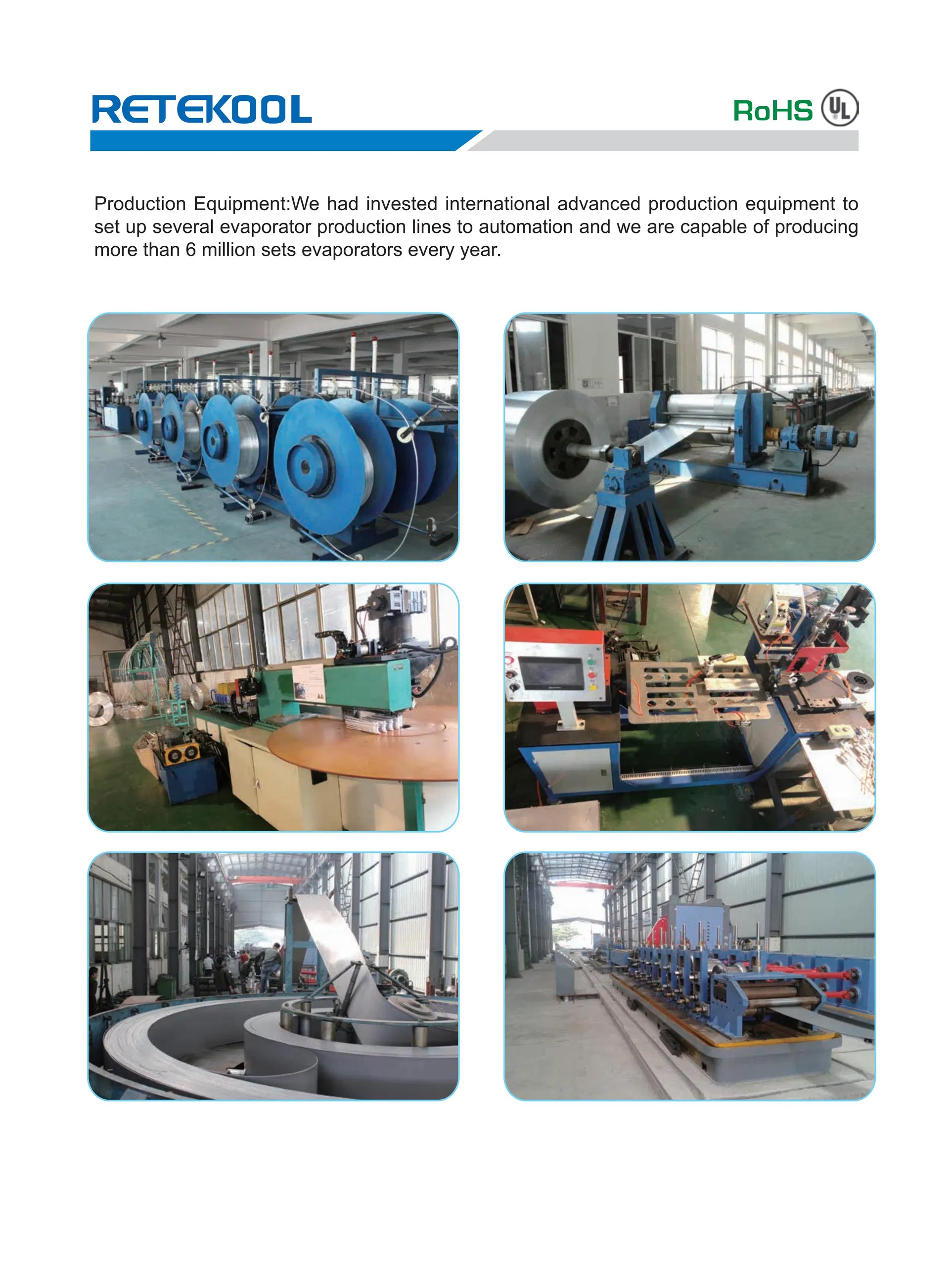

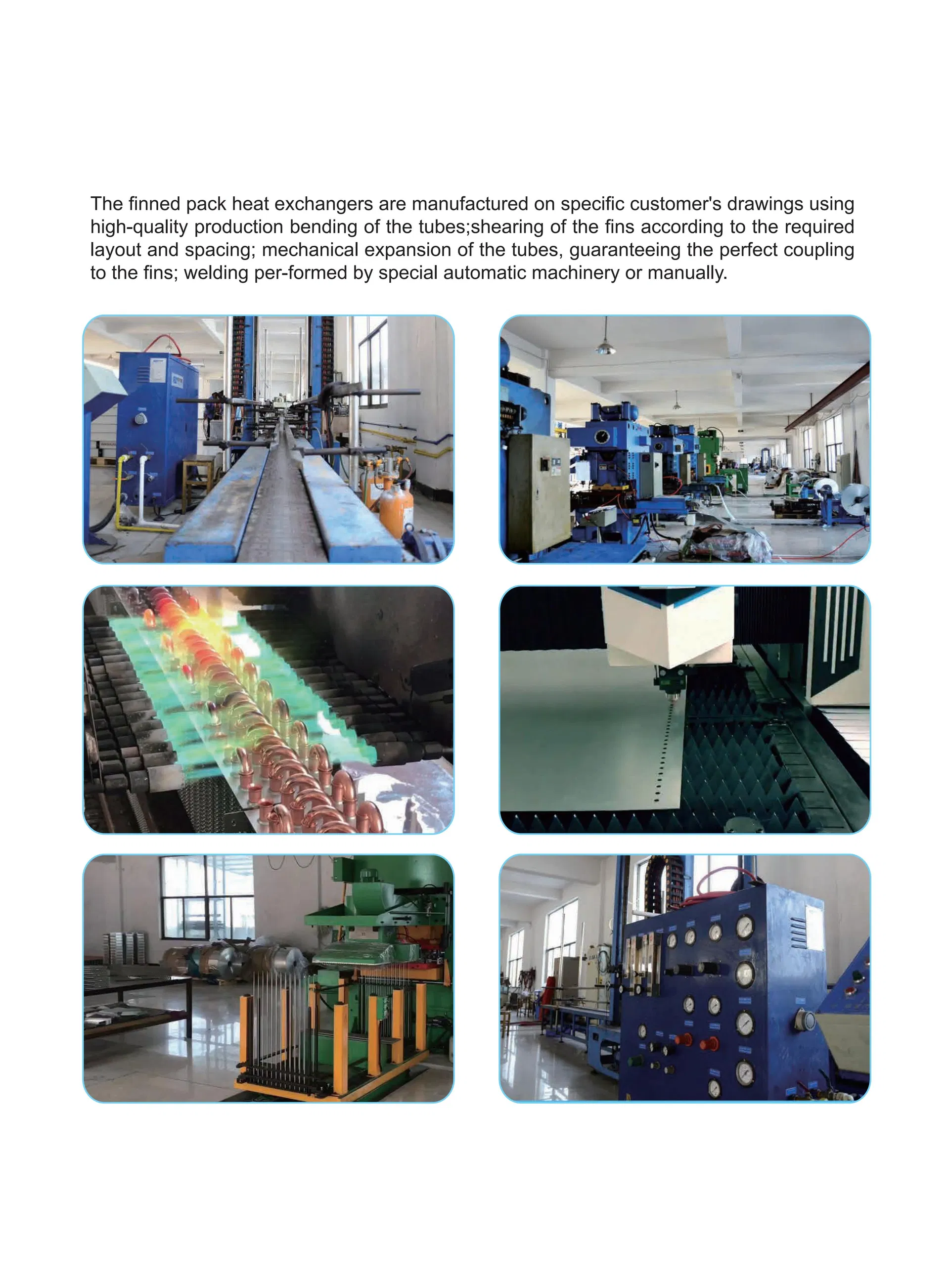

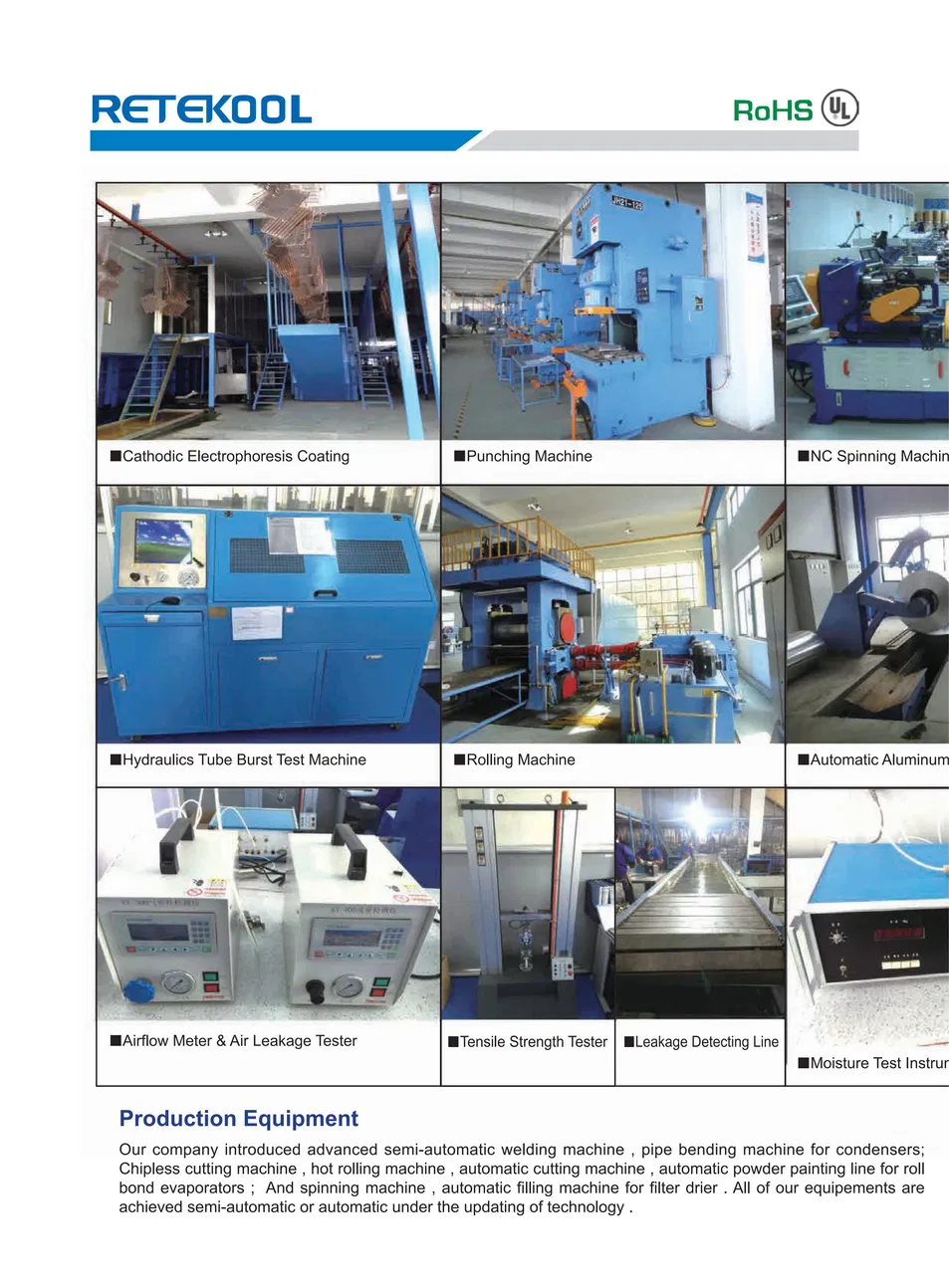

● Production Capacity & Manufacturing

Professional manufacturer of refrigeration Spare Parts for over 17 years. Our core expertise includes condensers, evaporators, filter driers, and thermostats. We take the lead in adopting new design concepts for wire tube condensers as a sustainable alternative to traditional copper units.

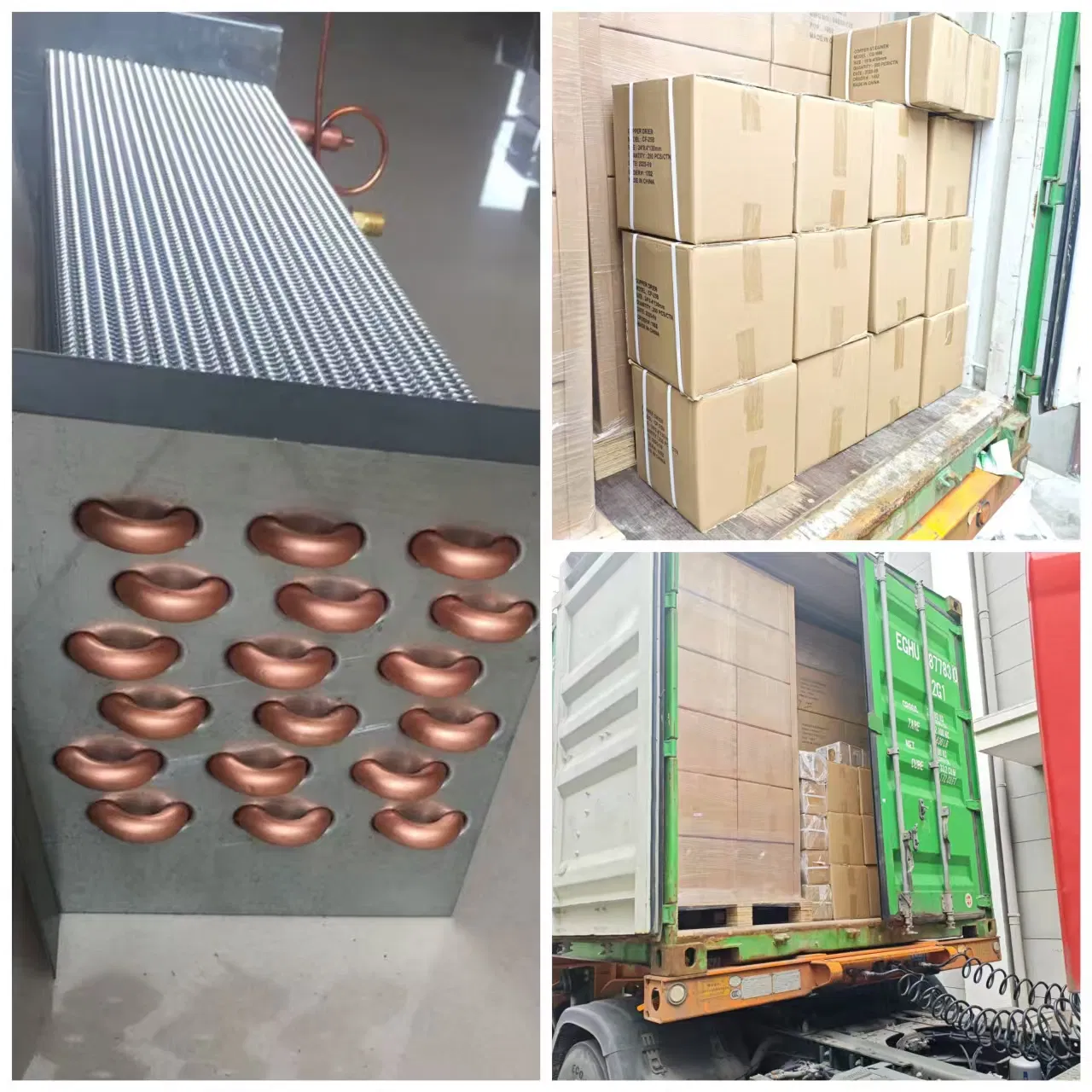

● Certifications & Logistics

● Exhibition Presence

● Frequently Asked Questions (FAQ)

What materials are used in the copper evaporator?

Our evaporators are constructed using high-quality copper tubes and aluminum fins (available in hydrophilic or bare options). The frames are typically made from galvanized or stainless steel for maximum durability.

How do you ensure the quality of the products?

We perform a strict 3.0 MPa nitrogen leak test on every unit. Additionally, we provide pre-production samples for approval and conduct a final inspection before every shipment to ensure performance standards are met.

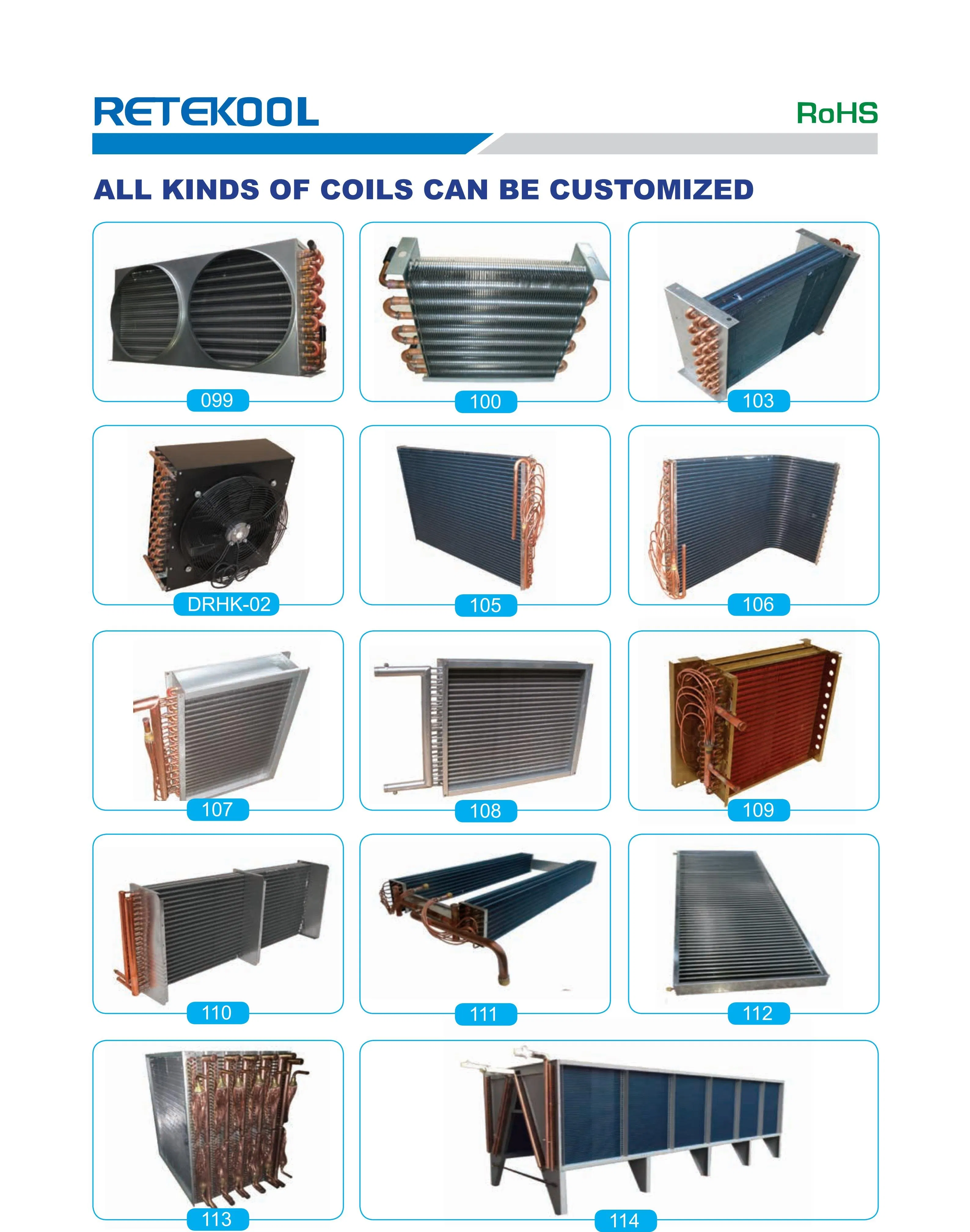

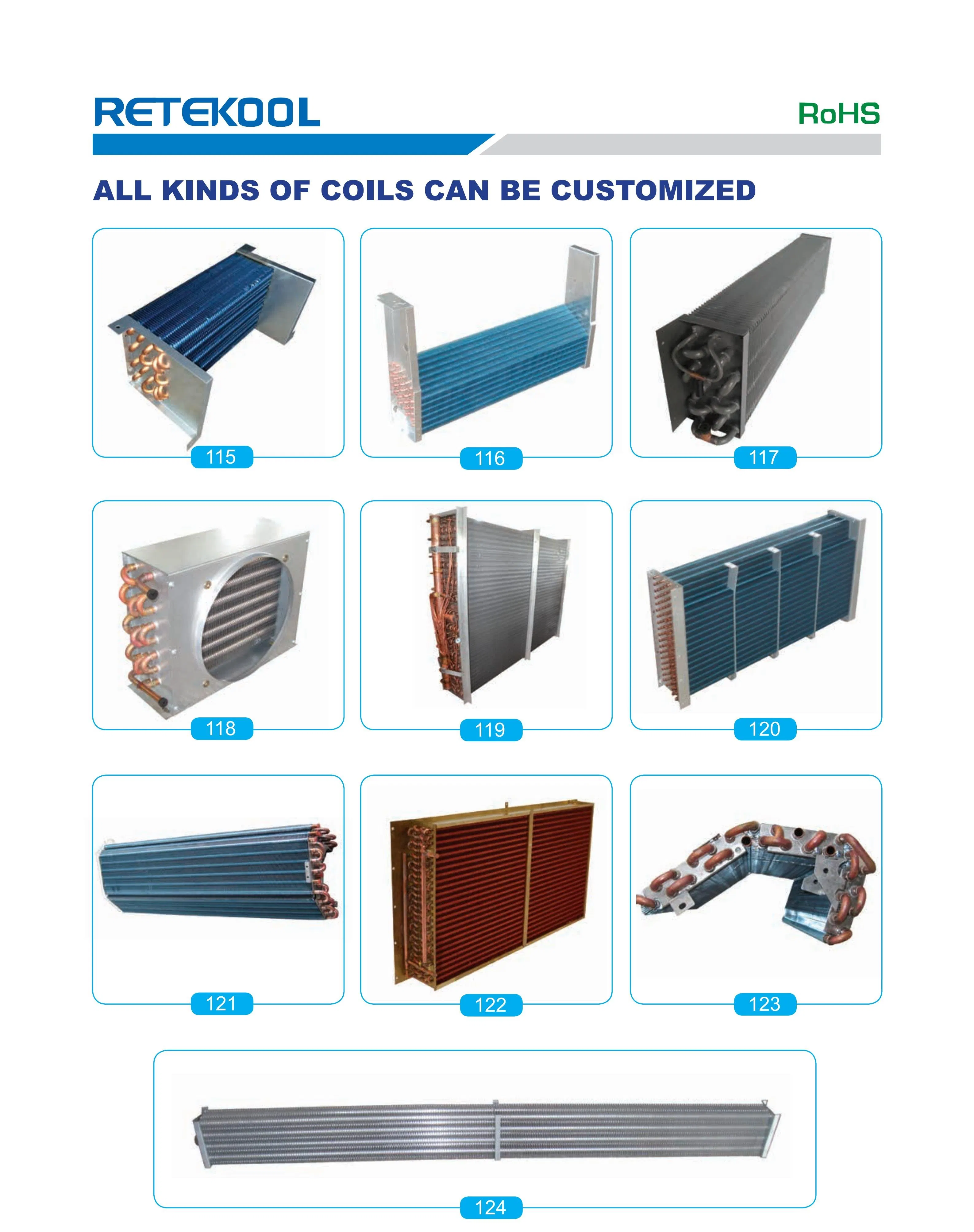

Can the specifications be customized for specific systems?

Yes, we offer full customization. You can select tube diameters (e.g., 7.0mm, 9.52mm), fin types (Louver, Flat, Corrugated), and adjust the fin pitch and dimensions to meet your specific cooling requirements.

Which refrigerants are compatible with these evaporators?

Our heat exchangers are compatible with a wide range of common refrigerants, including R134a, R404A, and R407C, making them suitable for various refrigeration applications.

What is the Minimum Order Quantity (MOQ) and lead time?

The standard MOQ is normally 1,000 pieces, though this may vary depending on the specific model. Delivery times are determined by the order volume and customization complexity.

Do you offer OEM services?

Yes, we have over 30 professional technical engineers to provide comprehensive OEM services and technical support for your specialized refrigeration projects.
