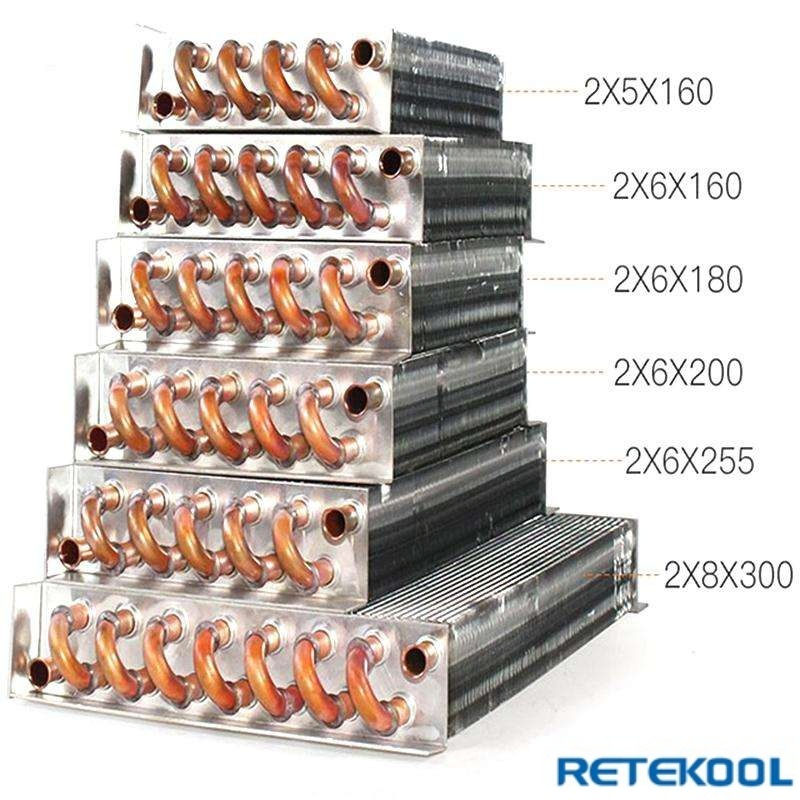

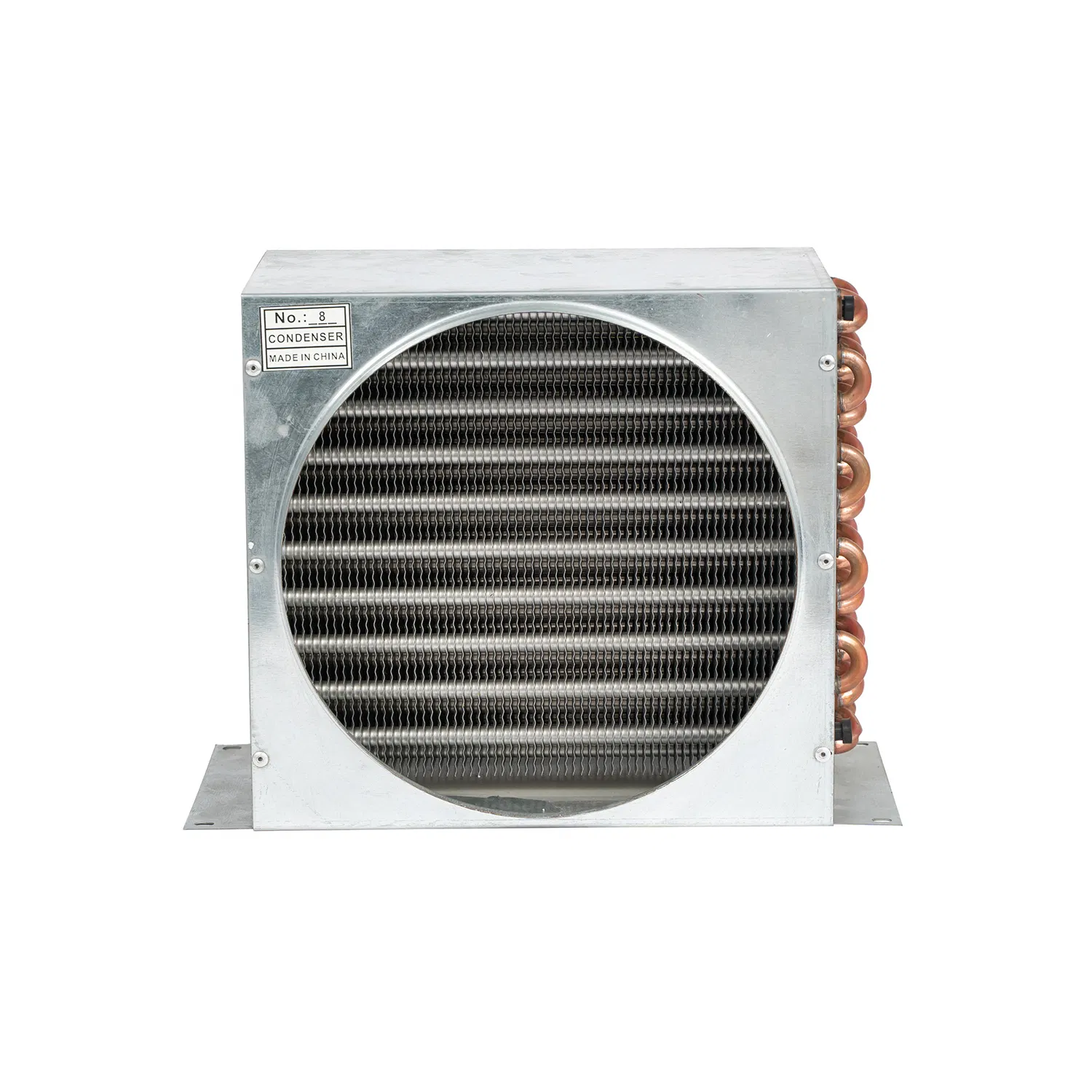

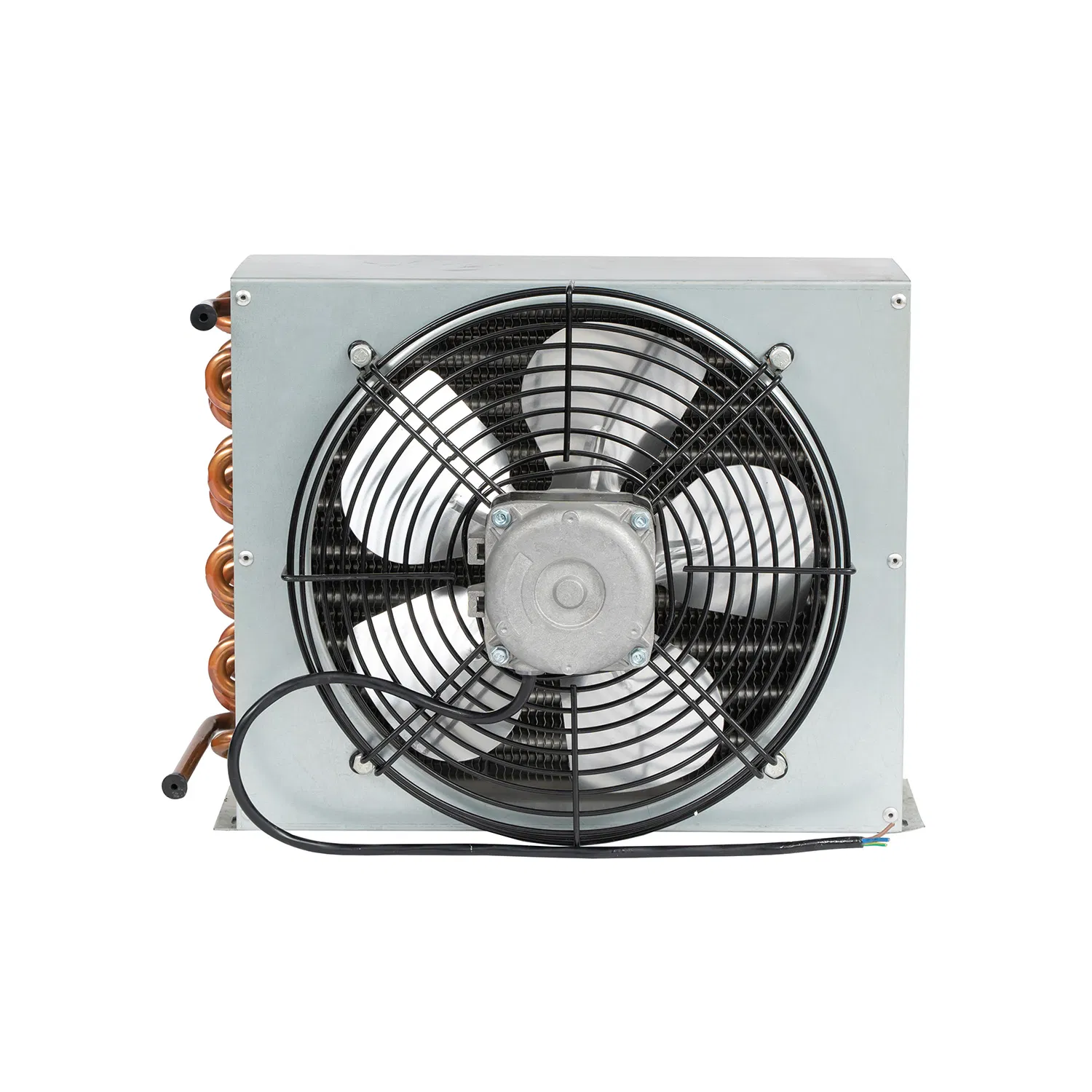

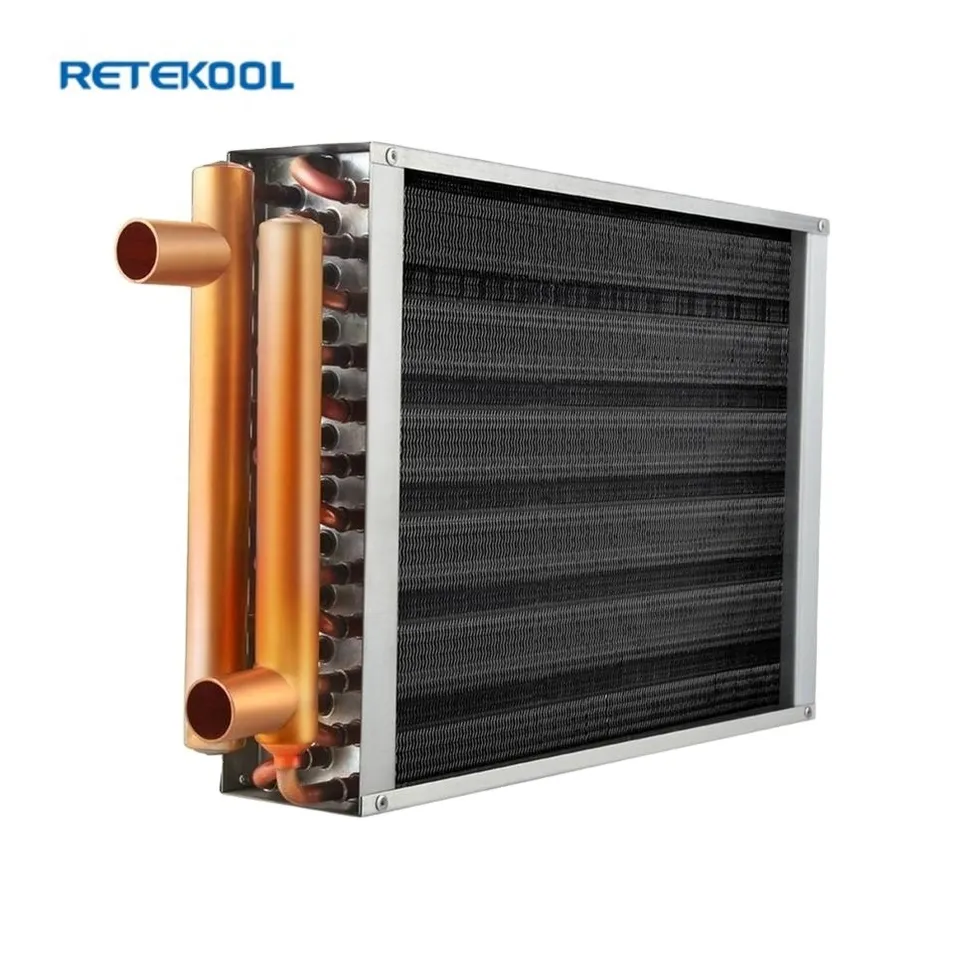

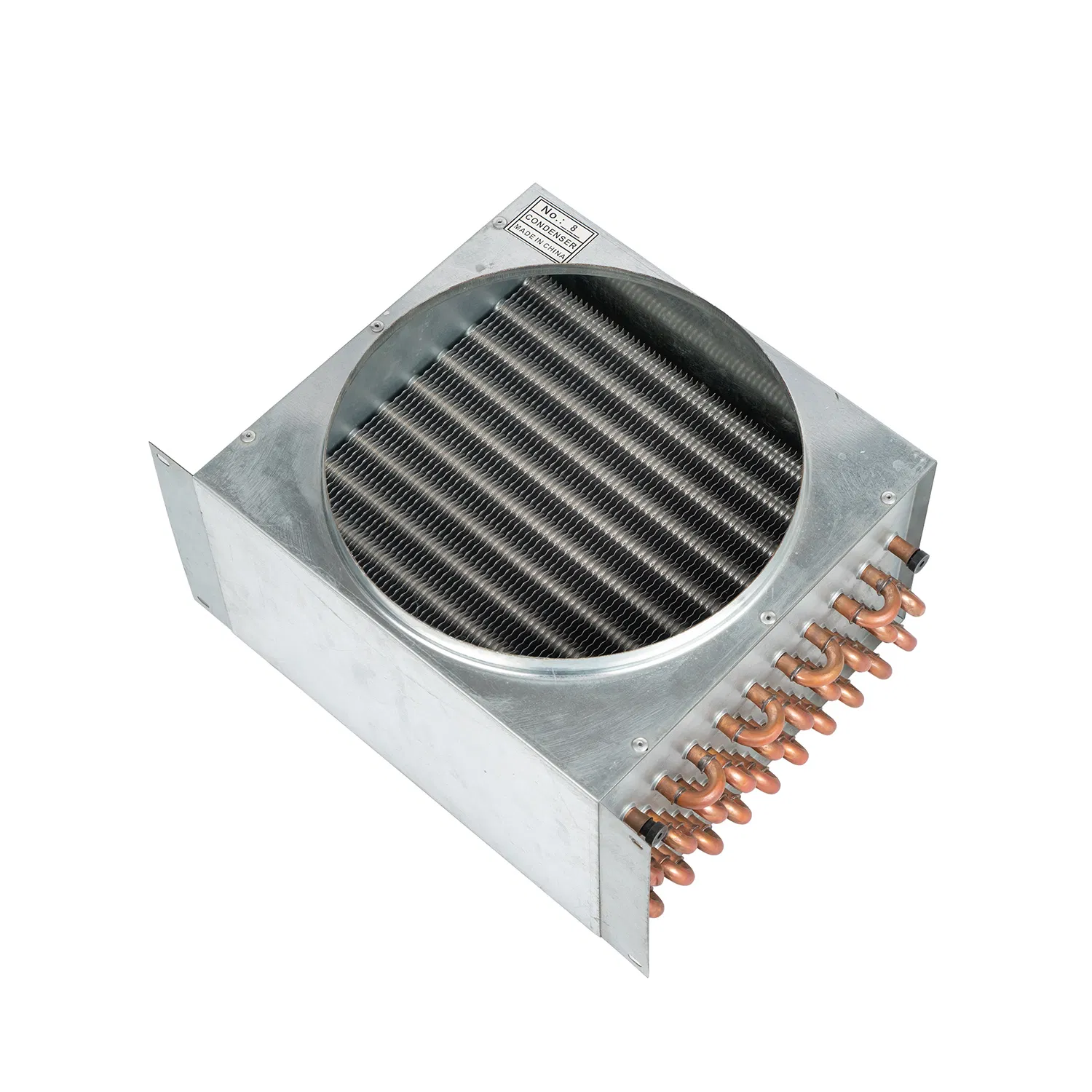

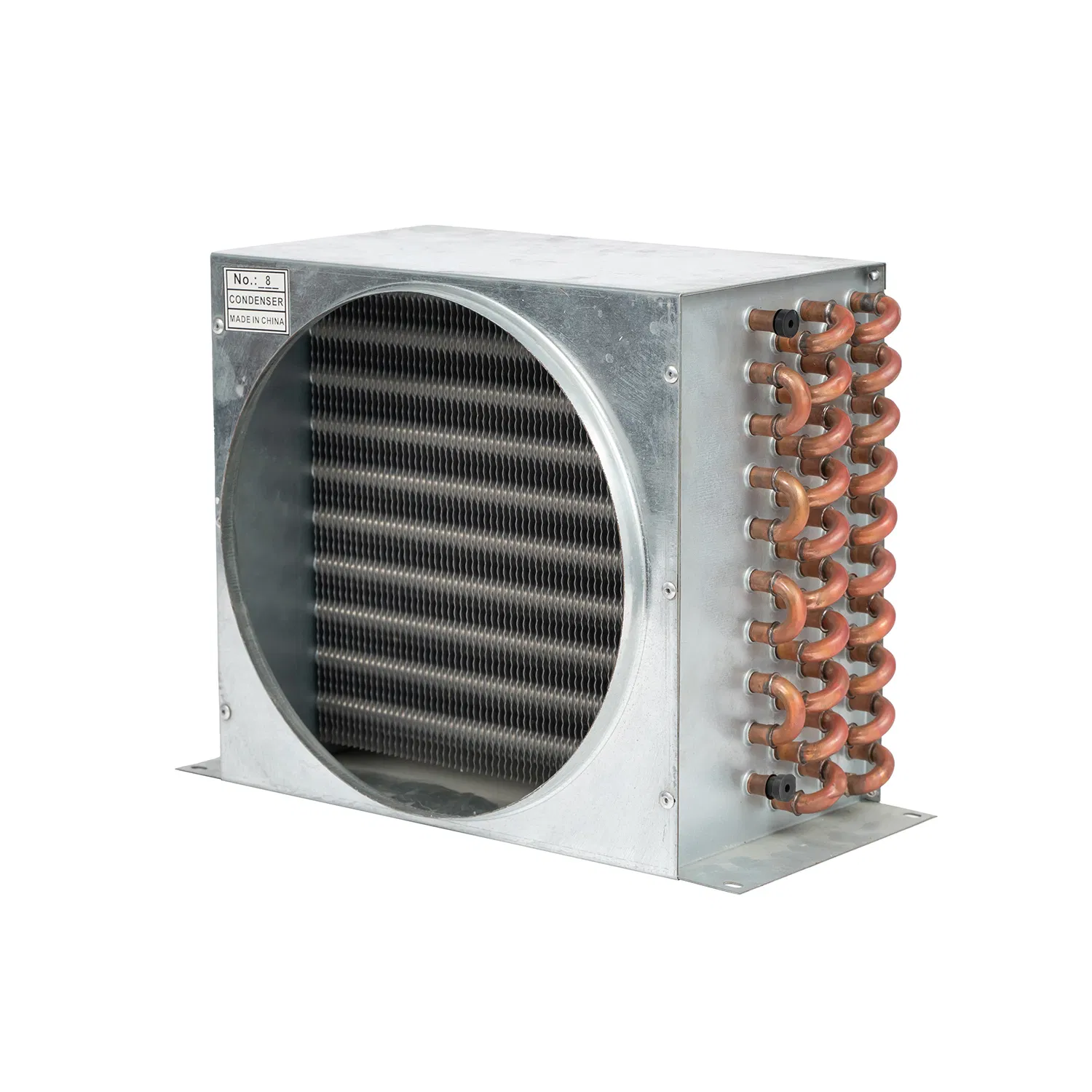

These core components are designed for high-efficiency commercial refrigeration equipment, including cold rooms and display cases. Constructed with premium copper tubes and hydrophilic or bare aluminum fins, they ensure superior heat transfer and long-term durability.
Key technical features include customizable tube diameters (7.0mm to 15.88mm), multiple fin types (Louver, Flat, Corrugated), and adjustable pitches. Every unit undergoes a rigorous 3.0 MPa nitrogen leak test to ensure reliability with refrigerants like R134a, R404A, and R407C.
| Copper Tube Diameter | Pitch (Holds & Rows) | Fin Space | Holds Array | Fin Surface | Defrost Heater |
|---|---|---|---|---|---|
| φ15.88mm | 50×50mm | 4-10mm | Equilateral Triangle | Sin-wave & Corrugated | With |
| φ12.7mm | 31.75X27.5mm | 3-9mm | Equilateral Triangle | Sin-wave & Corrugated | With |
| φ9.52mm | 25X21.65mm | 1.5-6mm | Equilateral Triangle | Louver / Flat | Available |
| φ7.0mm | 21×12.7mm | 1.3-1.8mm | Equilateral Triangle | Louver | Without |
A professional manufacturer of refrigeration spare parts with over 17 years of industry experience. Specializing in advanced design concepts for wire tube condensers, roll bond evaporators, and aluminum fin components.
