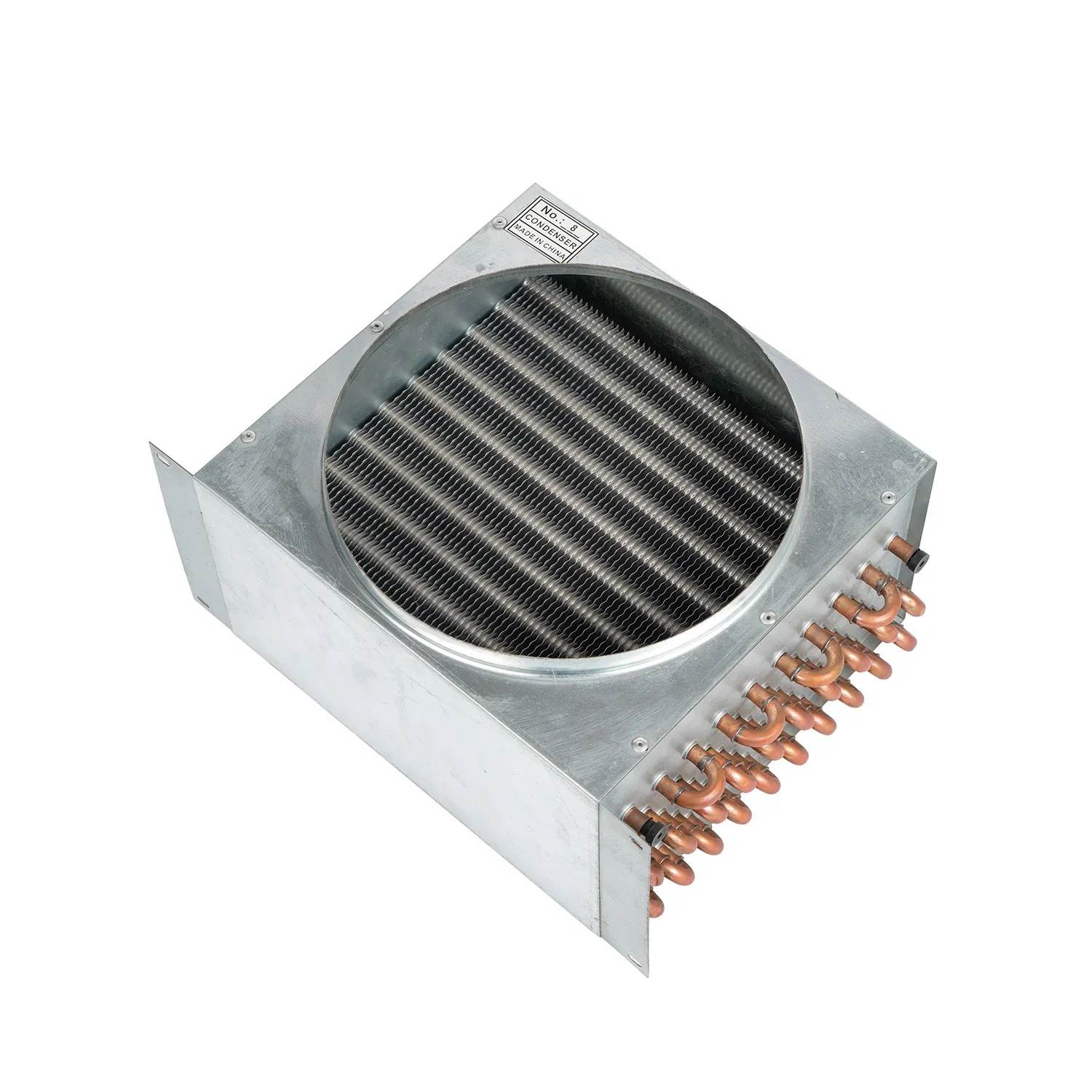

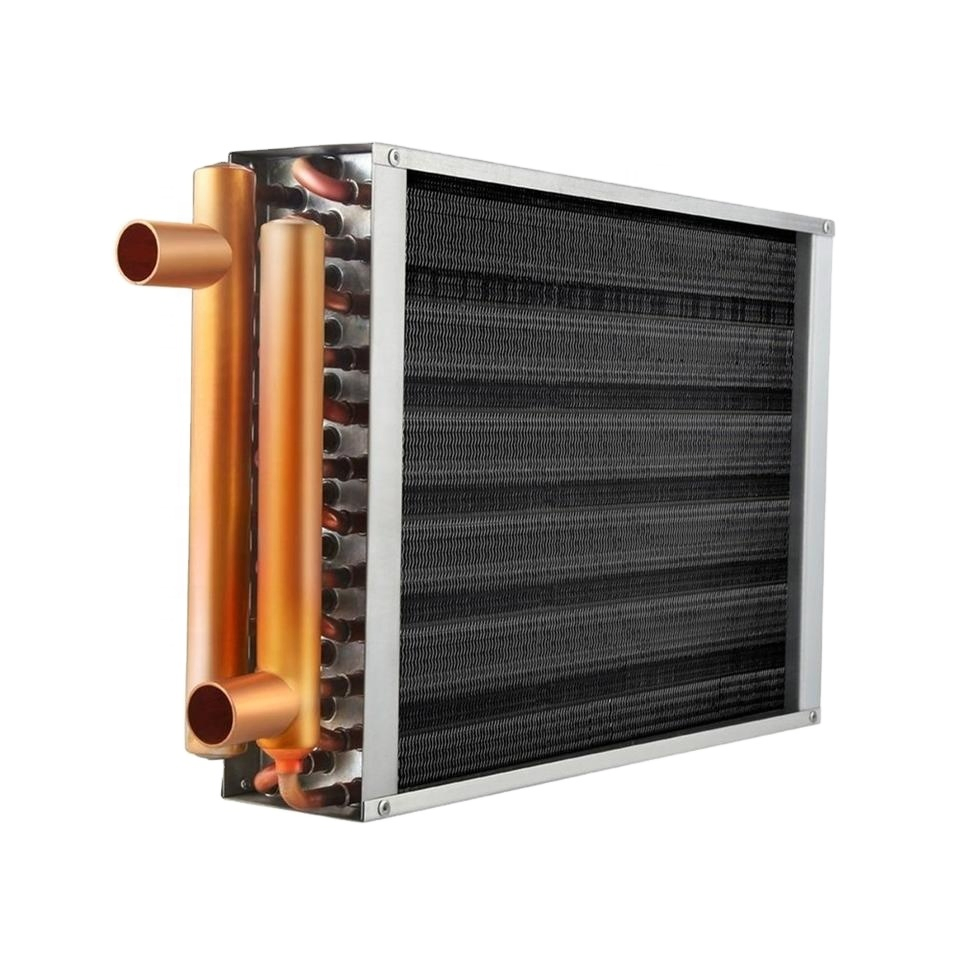

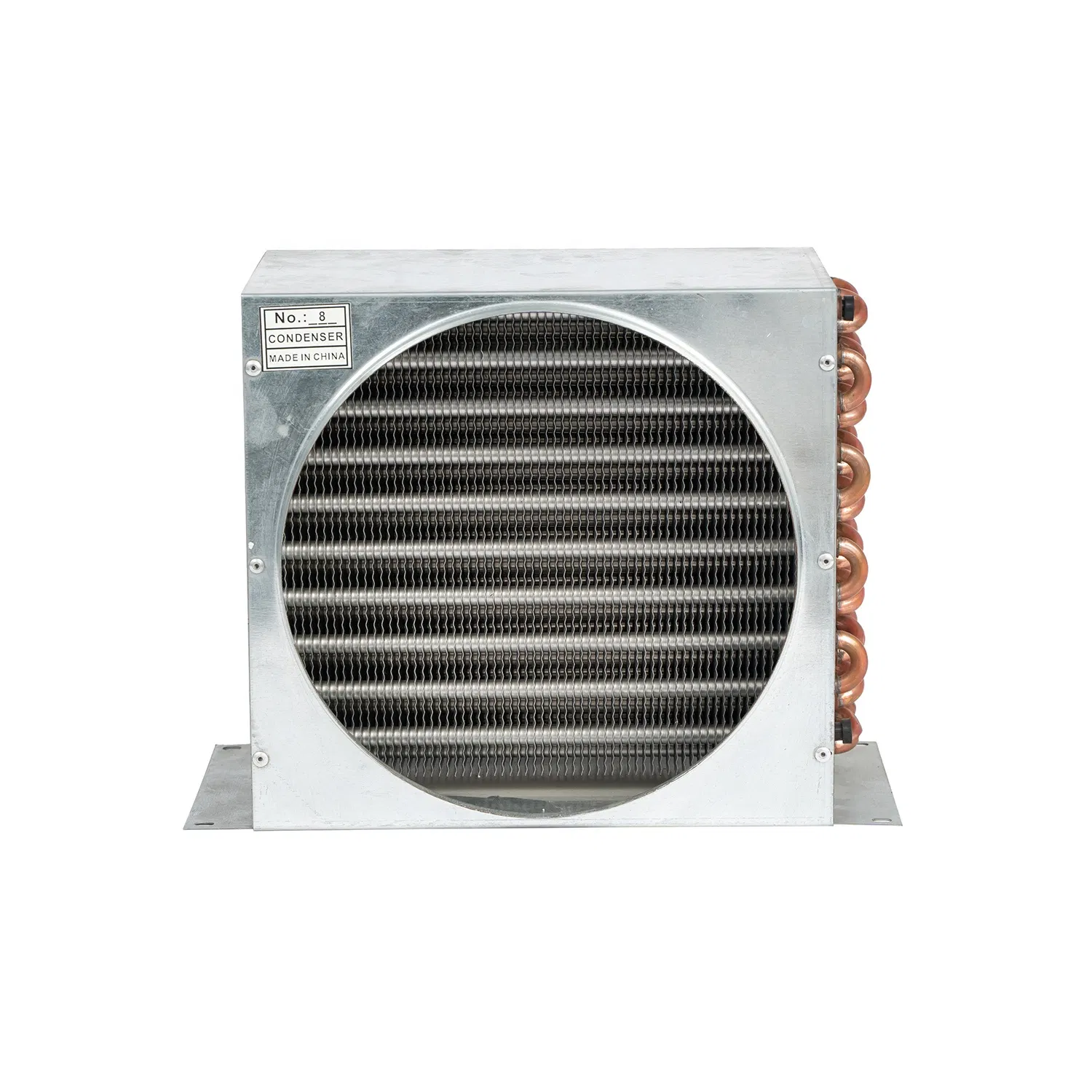

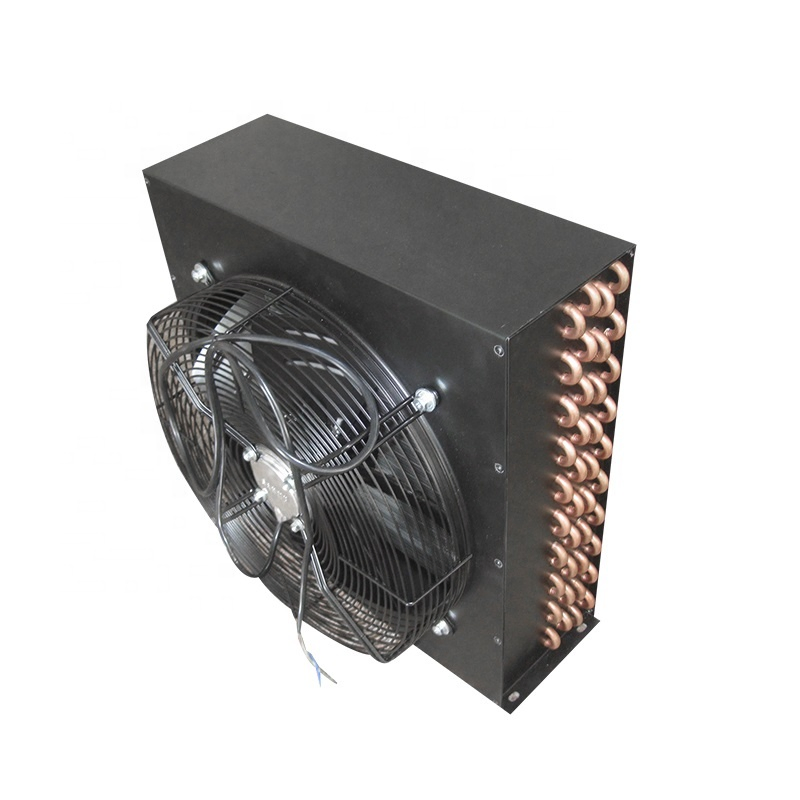

Heat Exchanger Copper Tube Condenser Evaporator Coil for Commercial Refrigerator Beverage Cooler

1 / 5

Heat Exchanger Copper Tube Condenser Evaporator Coil for Commercial Refrigerator Beverage Cooler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

EVAPORATOR

Parts

Evaporator

Certification

Type

Evaporator

Item

R134A Evaporator Heat Exchanger 5g Base Station

Function

Evaporator

Production Capacity

1,000,000,000 PCS/Year

HS Code

8418999990

⚙️ Product Description

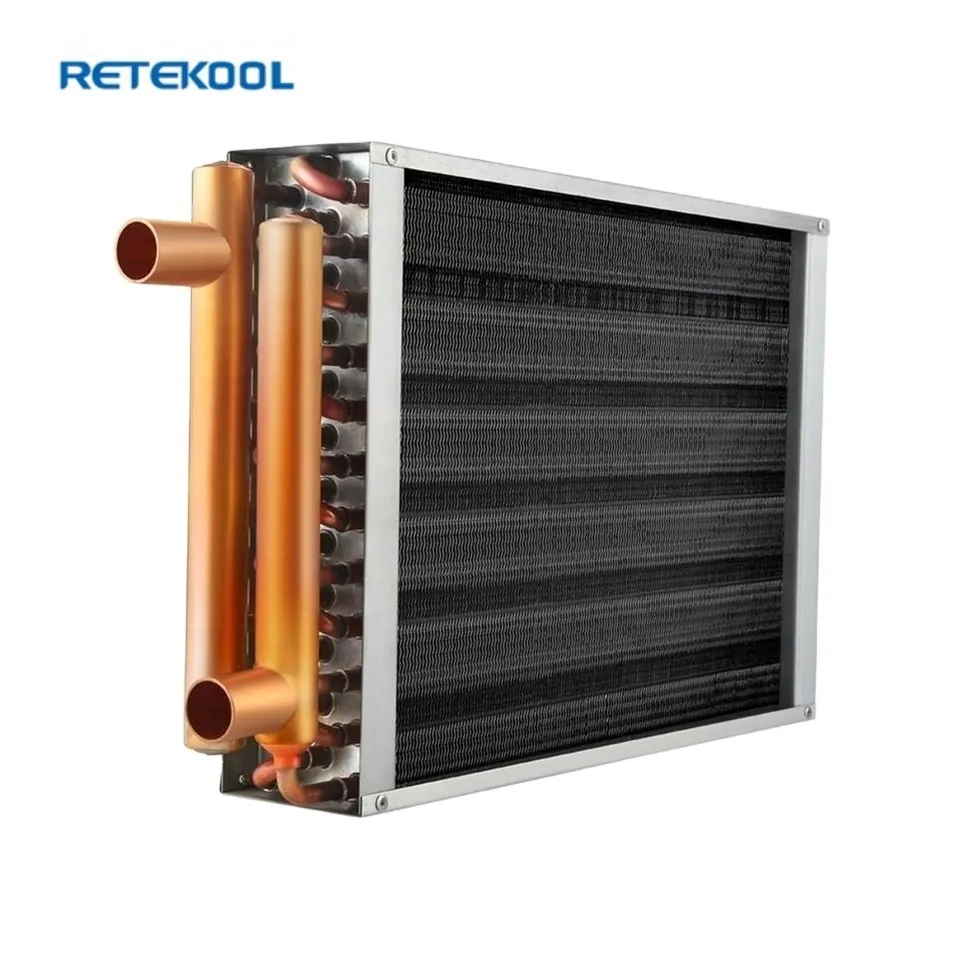

Copper Evaporator Features

These copper tube and aluminum fin evaporators are core components designed for commercial refrigeration equipment like cold rooms and display cases. Built with high-quality copper tubes, aluminum fins (hydrophilic or bare), and a galvanized/stainless steel frame, they ensure efficient heat transfer and durability.

Key features include customizable tube diameters (e.g., 7.0/7.94/9.52mm), selectable fin types (Louver, Flat, Corrugated) with adjustable pitch (1.8-5.8mm), and support for various layout patterns. Every unit is guaranteed leak-proof through a strict 3.0 MPa nitrogen test and is compatible with common refrigerants (R134a, R404A, R407C).

Copper Tube Diameter	Holds & Rows Pitch	Fin Space	Holds Array	Fin Surface	Fin Edge Type	Defrost Heater
φ15.88mm	50×50mm	4-10mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ15.88mm	38X33mm	2.5-4mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ12.7mm	31.75X27.5mm	3-9mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ9.52mm	25X21.65mm	1.5-6mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ9.52mm	31.75X27.5mm	2.5-7.5mm	Equilateral Triangle	Sin-wave & Corrugated	Flat + Wave	With
φ9.52mm	25x21.65mm	1.5-2.5mm	Equilateral Triangle	Louver	Flat	Without
φ7.94mm	25x21.65mm	1.5-3.5mm	Equilateral Triangle	Flat	Flat + Wave	Without
φ7.0mm	21×12.7mm	1.3-1.8mm	Equilateral Triangle	Louver	Flat	Without

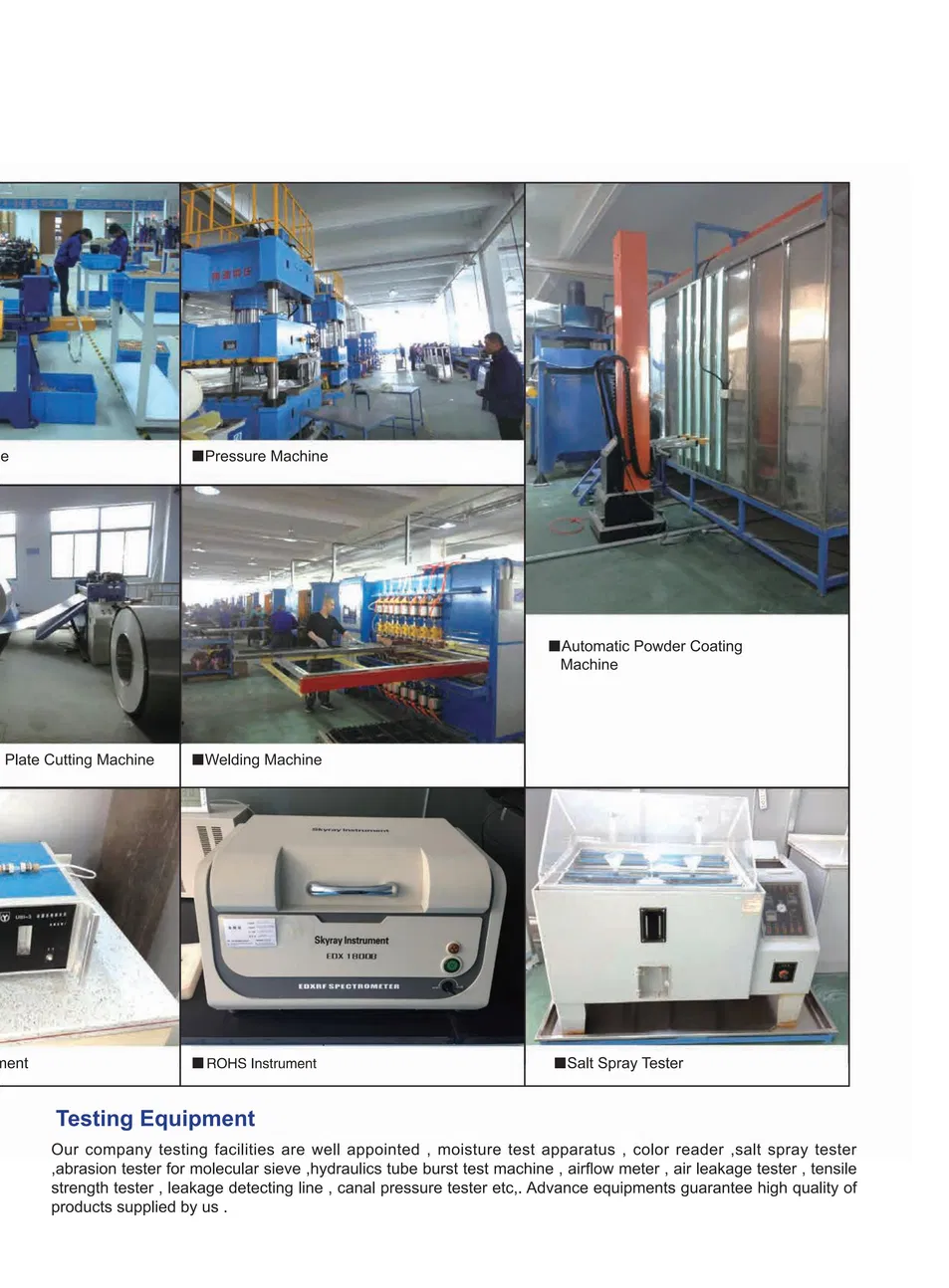

🏢 Professional Manufacturing

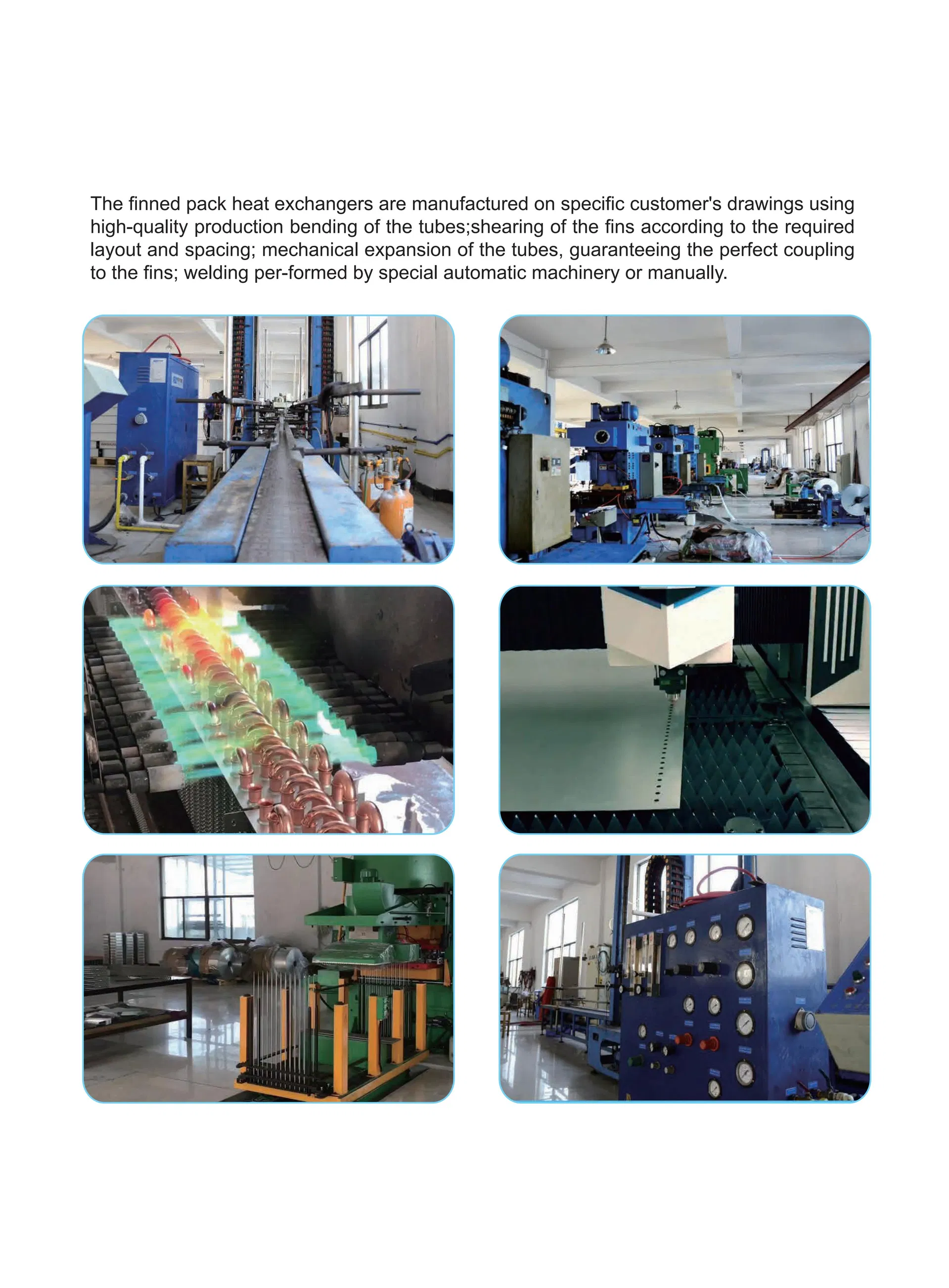

We are a professional manufacturer of refrigeration spare parts with over 17 years of experience. Our main product lines include condensers, evaporators, filter driers, and thermostats. We lead in adopting new design concepts, such as wire tube condensers that effectively replace copper condensers, aligning with global trends for low-carbon and environmental protection.

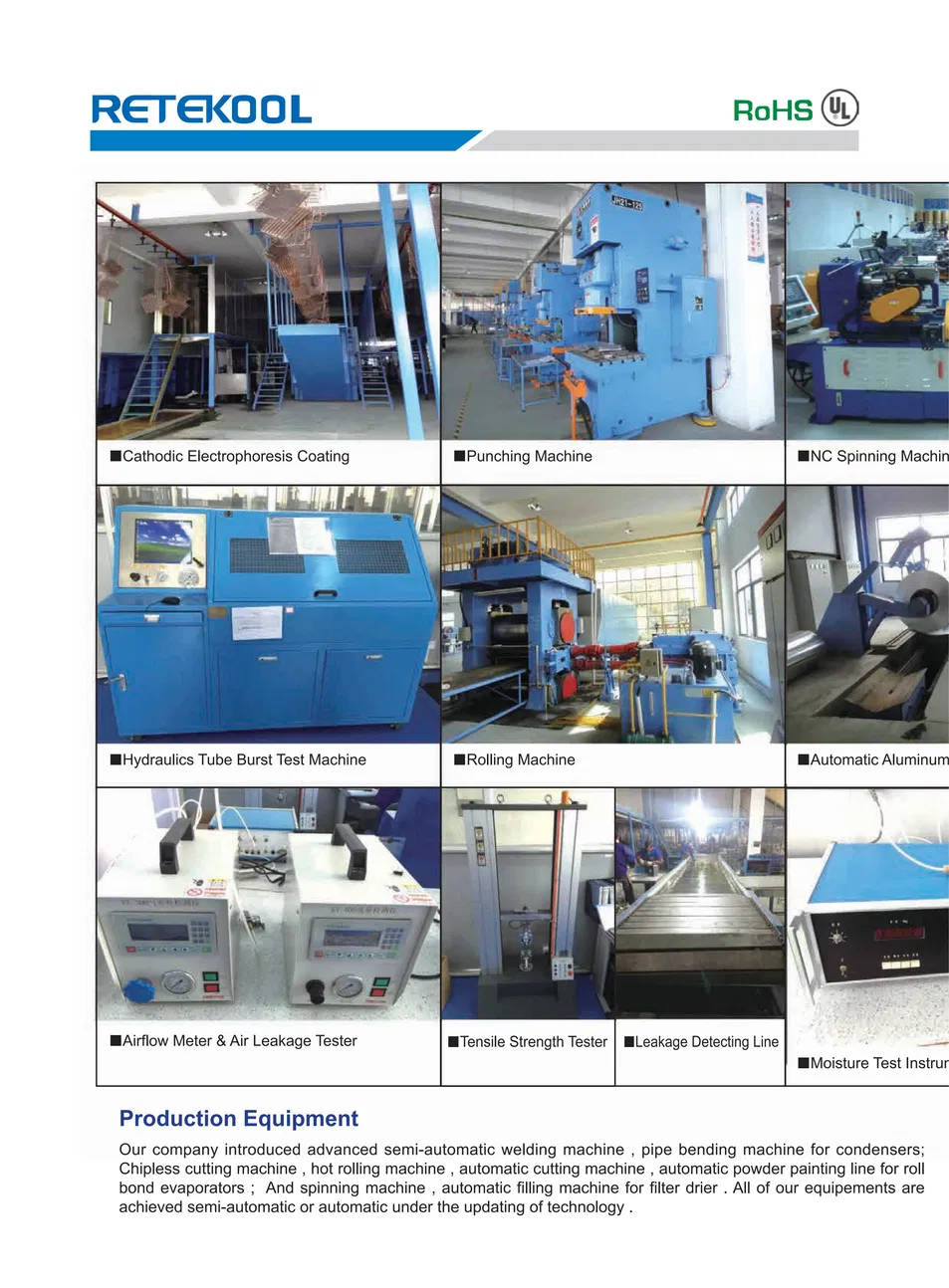

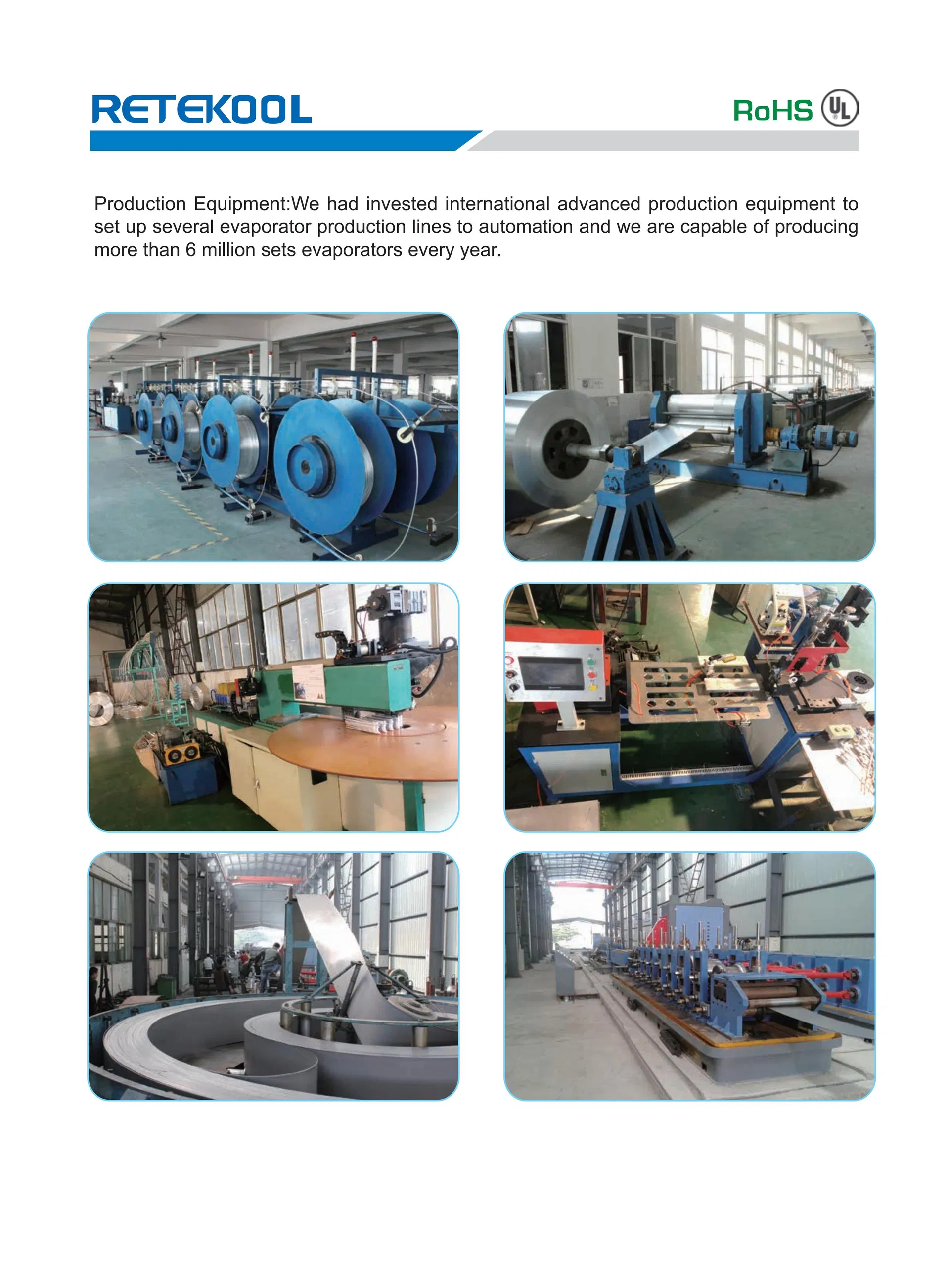

Our annual production capacity includes 6 million wire tube condensers, 2 million shutter condensers, 3 million roll bond evaporators, and 2.5 million aluminum fin condensers. With a technical team of over 30 professional engineers, we provide comprehensive OEM services and high-performance solutions for global partners.

📜 Certifications & Global Presence

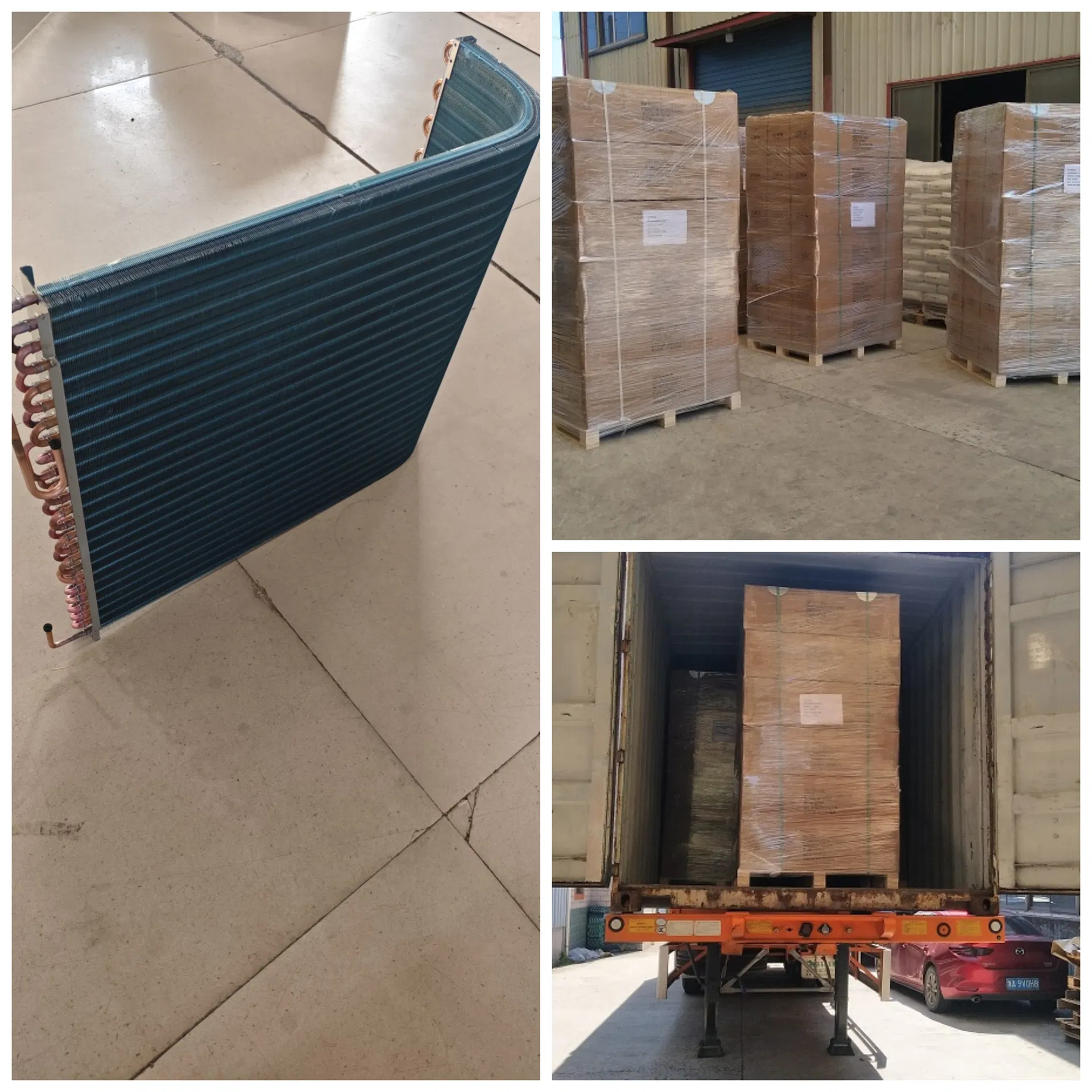

Packing & Exhibition

❓ Frequently Asked Questions

How do you guarantee the quality of your evaporators?

We conduct a strict 3.0 MPa nitrogen leak test on every unit. Additionally, we provide pre-production samples before mass production and perform a final inspection before shipment.

What materials are used in the construction of the coils?

Our coils are built with high-quality copper tubes and aluminum fins (available in hydrophilic or bare options), supported by galvanized or stainless steel frames.

Do you support product customization?

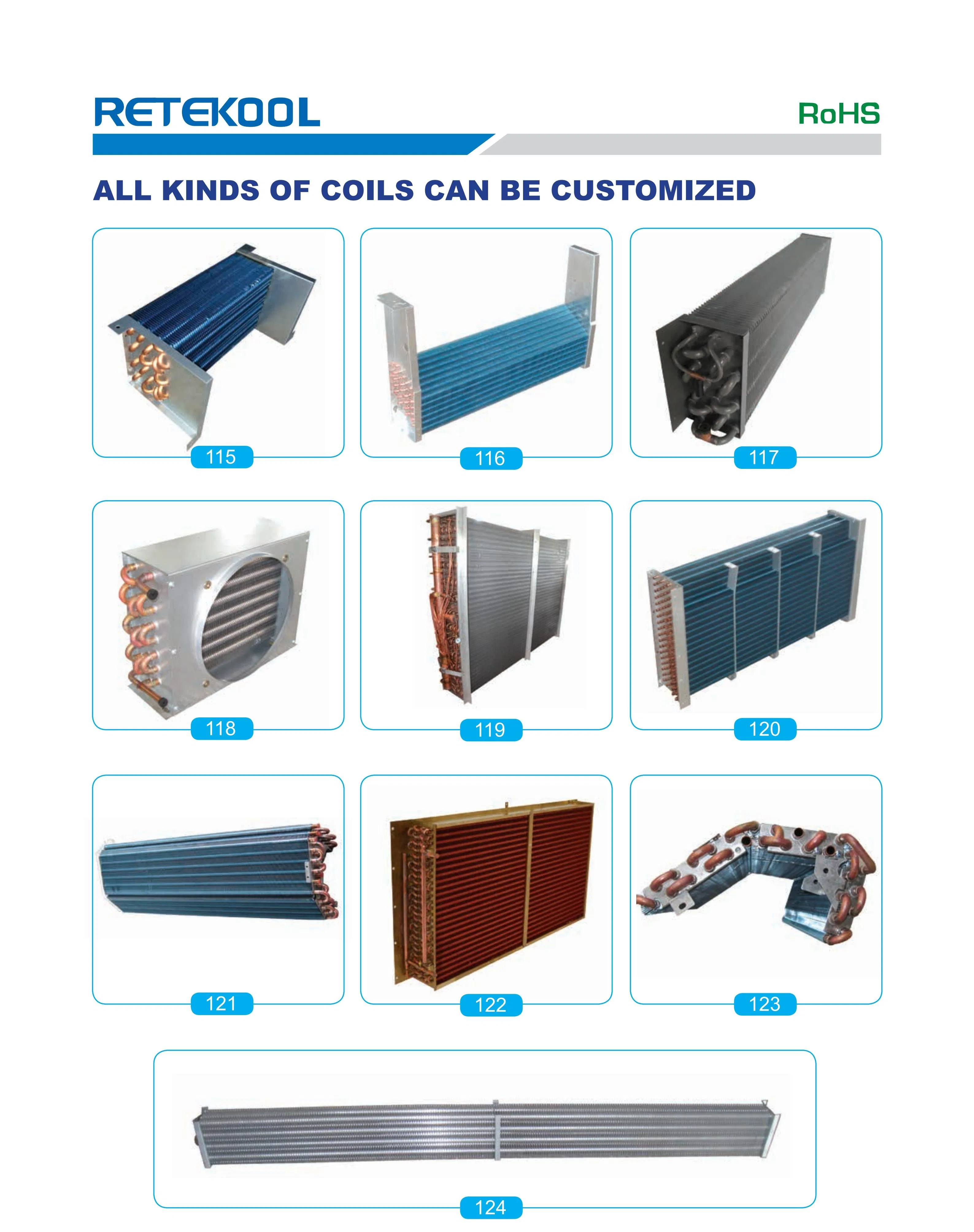

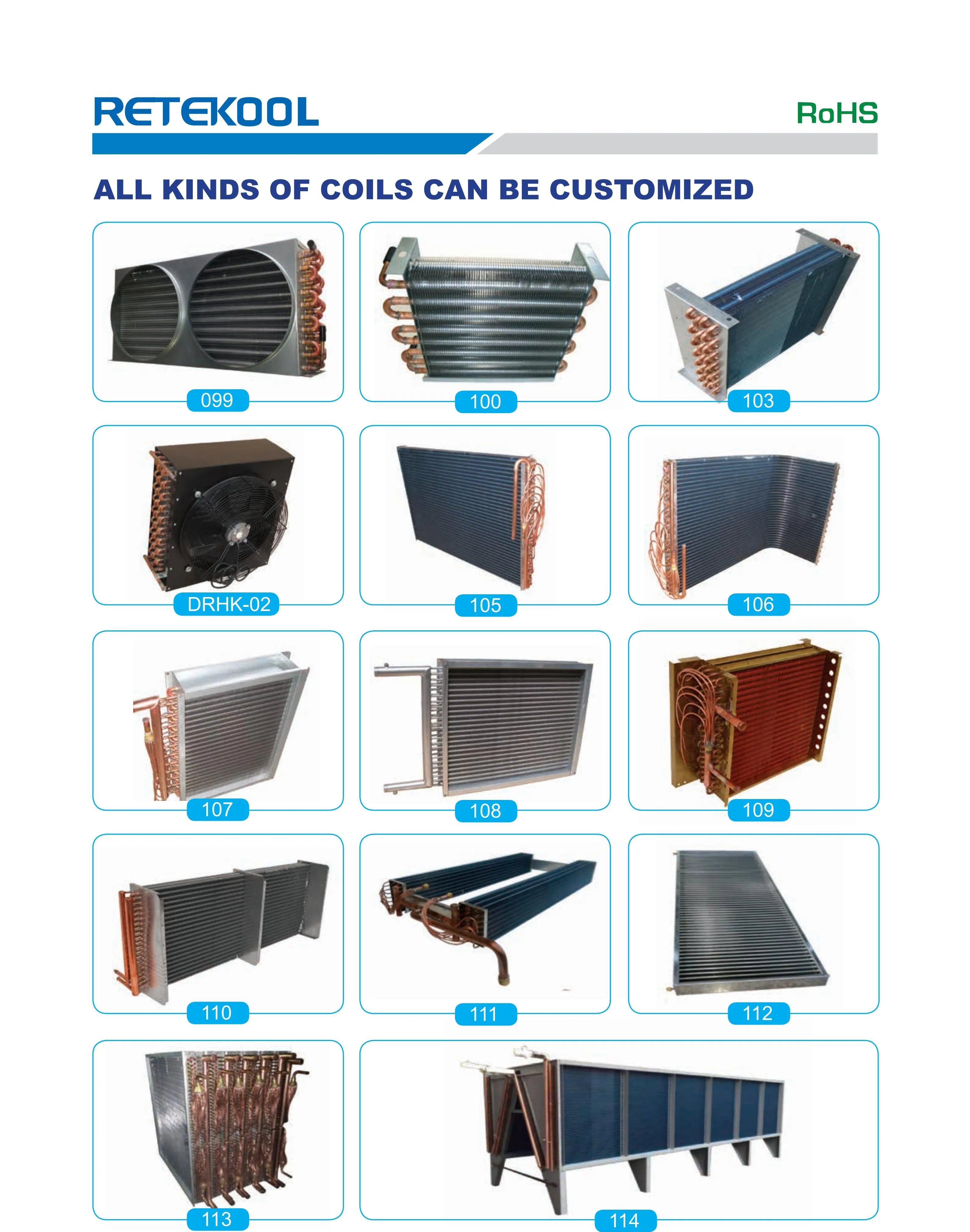

Yes, we offer full technical support to customize tube diameters, fin types, pitch, and overall layout patterns to meet your specific system requirements.

What is the typical Minimum Order Quantity (MOQ)?

The MOQ generally depends on the specific item ordered, but it is normally around 1,000 pieces per order.

What refrigerants are these evaporators compatible with?

Our evaporators are compatible with most common refrigerants, including R134a, R404A, and R407C.

What payment and delivery terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, PayPal, and Western Union in multiple currencies such as USD, EUR, and CNY.
