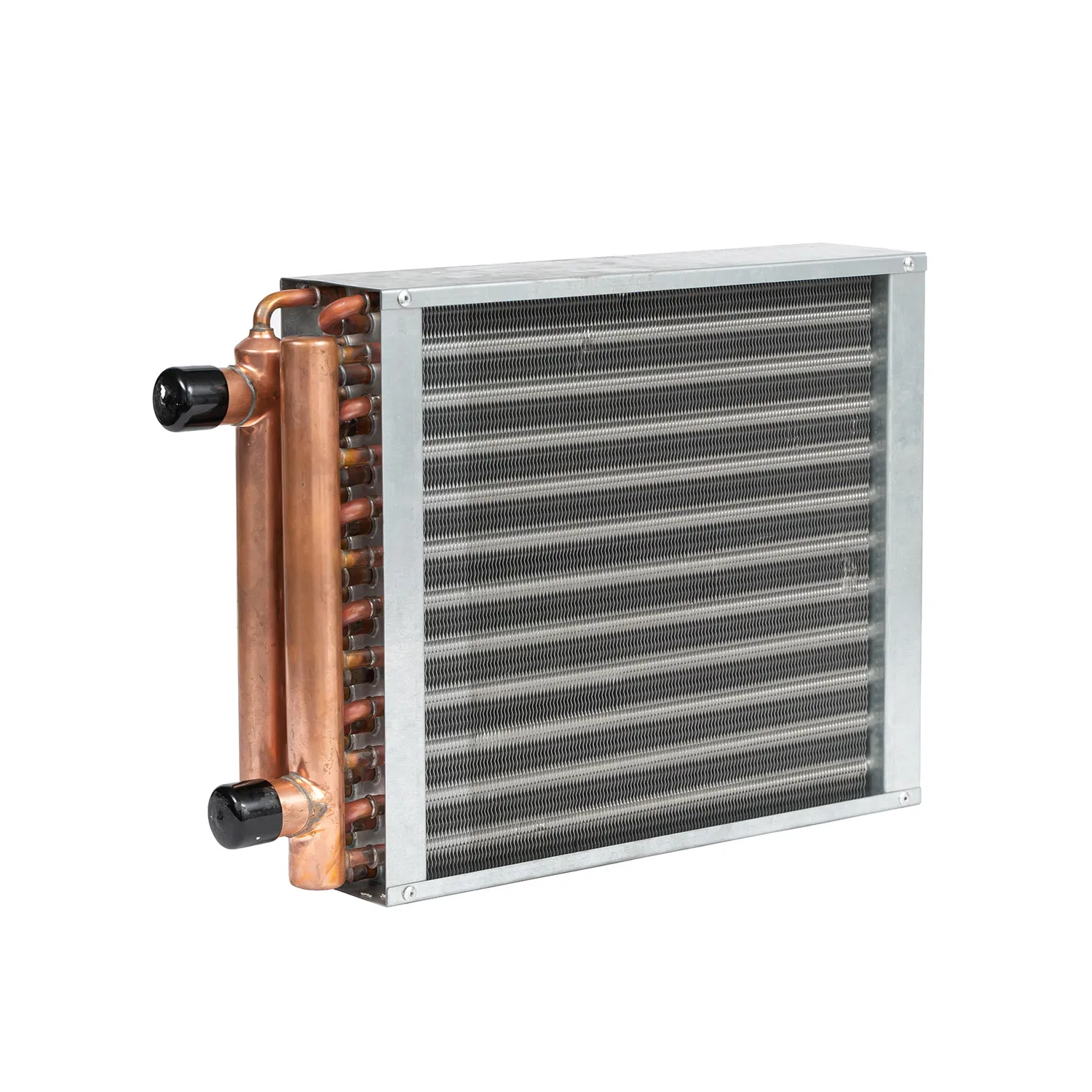

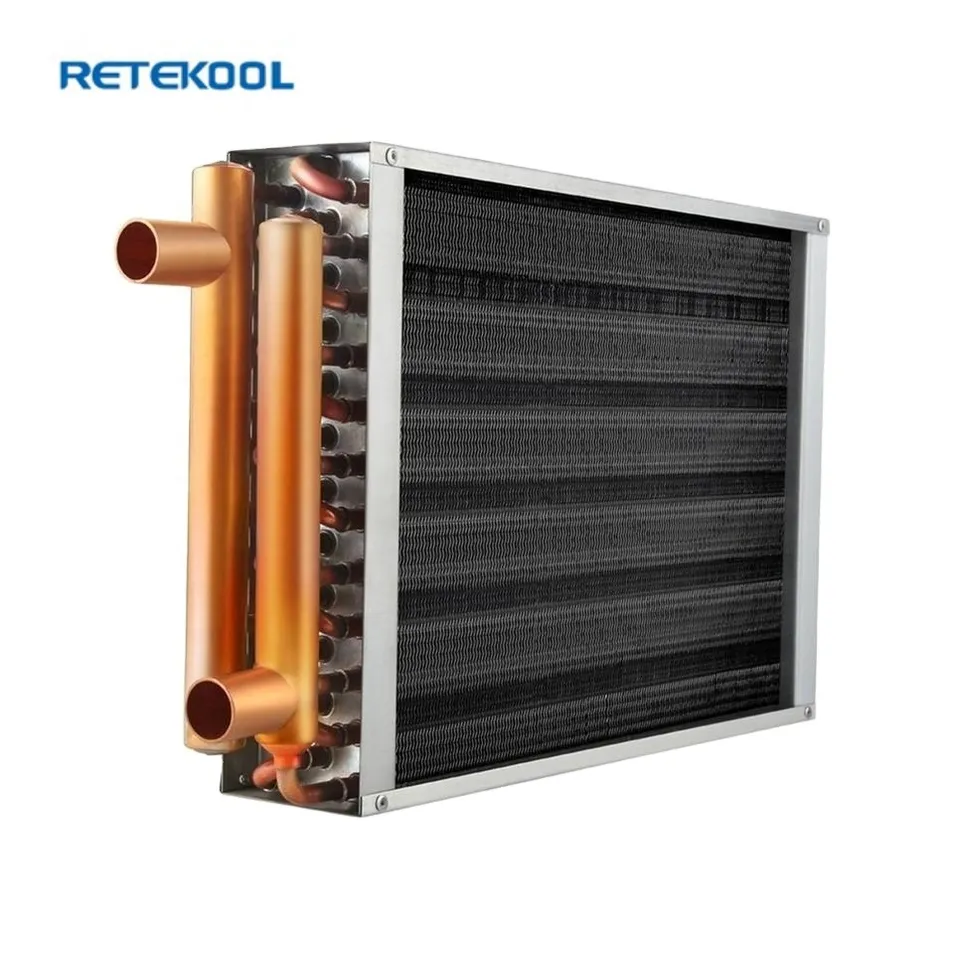

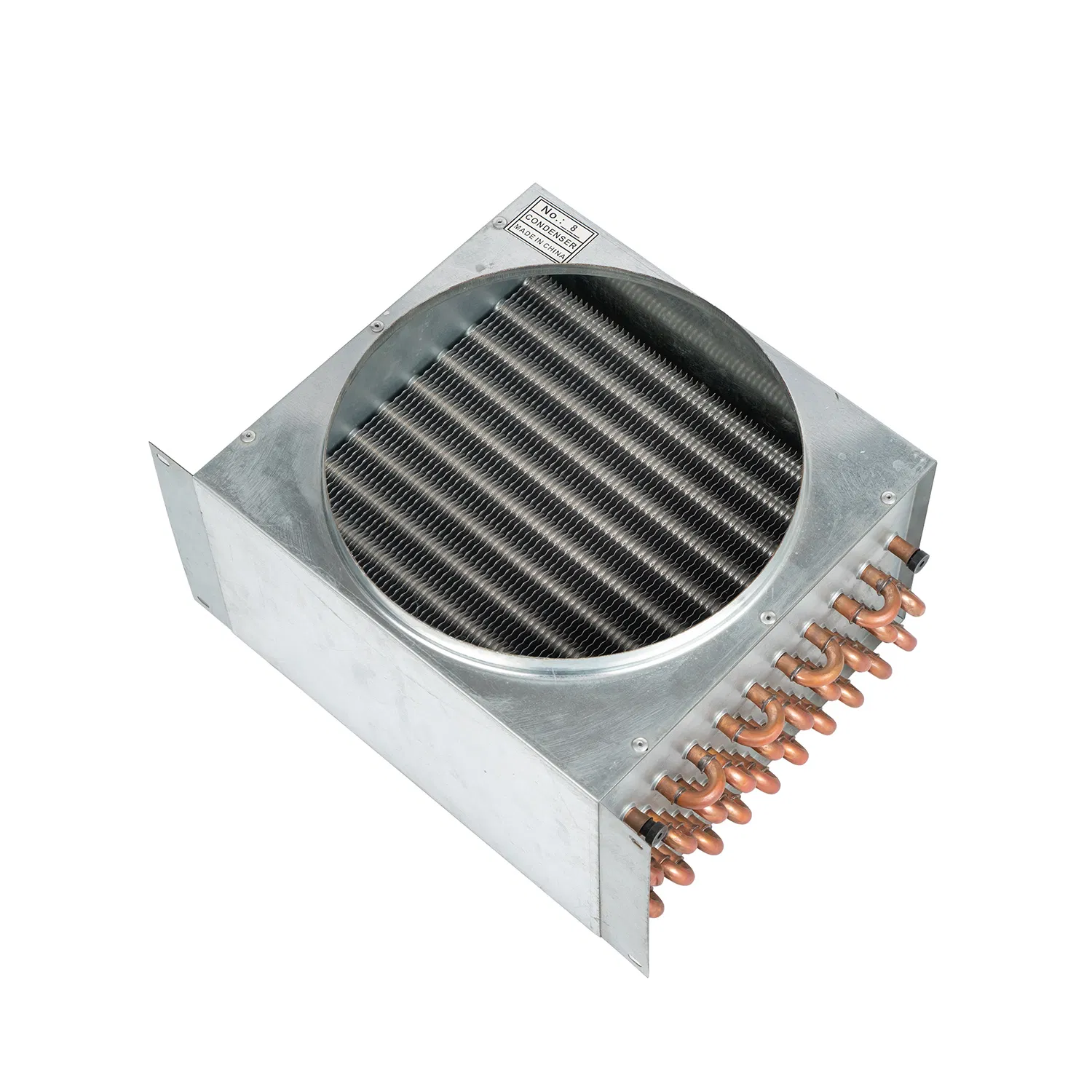

These copper tube and aluminum fin evaporators are core components designed for commercial refrigeration equipment like cold rooms and display cases. Built with high-quality copper tubes, aluminum fins (hydrophilic or bare), and a galvanized/stainless steel frame, they ensure efficient heat transfer and durability.
Key features include customizable tube diameters (e.g., 7.0/7.94/9.52mm), selectable fin types (Louver, Flat, Corrugated) with adjustable pitch (1.8-5.8mm), and support for various layout patterns. Every unit is guaranteed leak-proof through a strict 3.0 MPa nitrogen test and is compatible with common refrigerants (R134a, R404A, R407C). We provide tailored solutions, offering technical support to customize the design for your specific system requirements.
Copper Tube Diameter
Holes & Rows Pitch
Fin Space
Holes Array
Fin Surface
Fin Edge Type
Defrost Heater
φ15.88mm
50×50mm
4-10mm
Equilateral Triangle
Sin-wave & Corrugated
Flat+Wave
With
φ12.7mm
31.75X27.5mm
3-9mm
Equilateral Triangle
Sin-wave & Corrugated
Flat+Wave
With
φ9.52mm
25X21.65mm
1.5-6mm
Equilateral Triangle
Sin-wave & Corrugated
Flat+Wave
With
φ9.52mm
25x21.65mm
1.5-2.5mm
Equilateral Triangle
Louver
Flat
Without
φ7.94mm
25x21.65mm
1.5-3.5mm
Equilateral Triangle
Flat
Flat+Wave
Without
φ7.0mm
21×12.7mm
1.3-1.8mm
Equilateral Triangle
Louver
Flat
Without

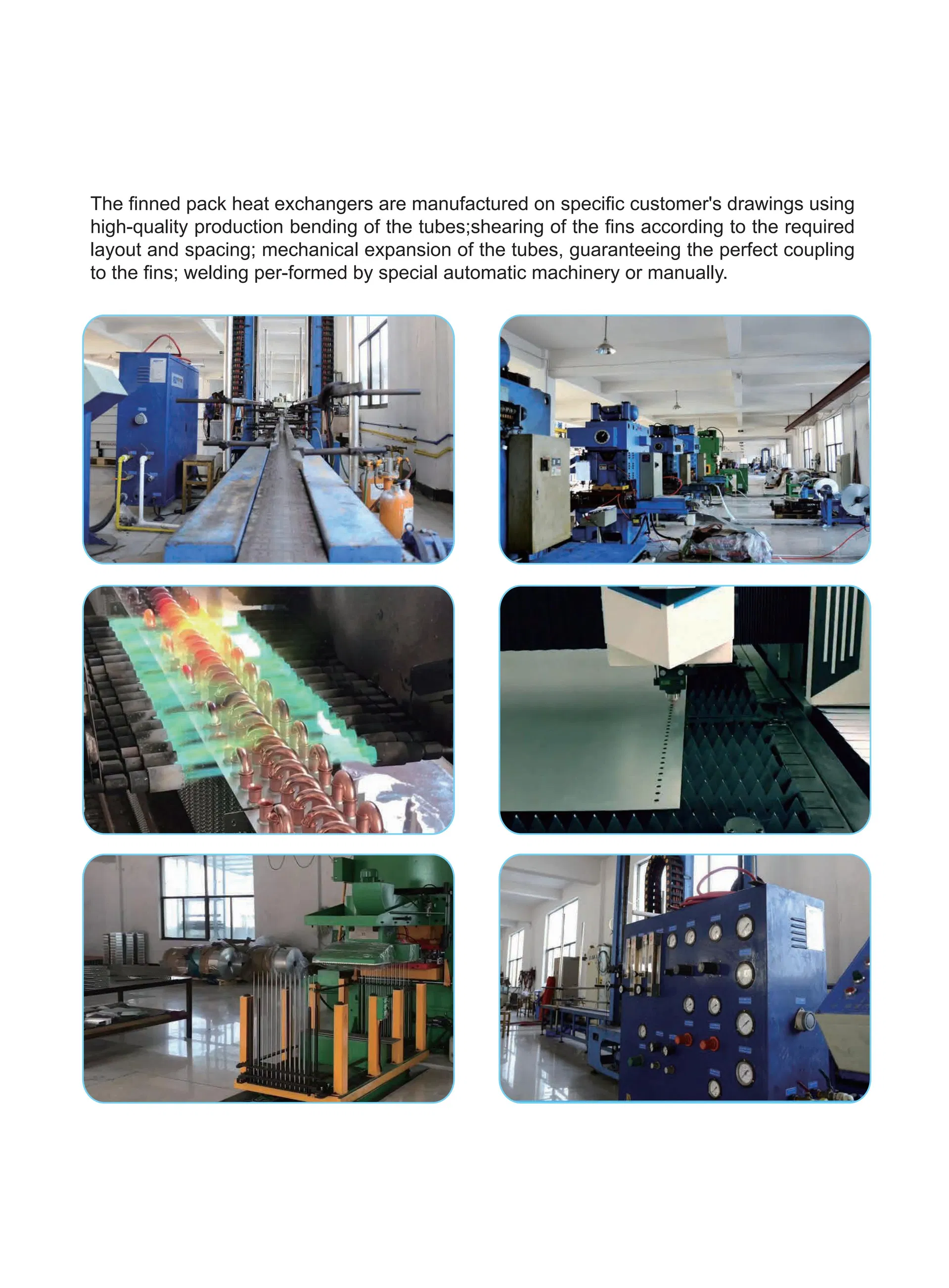

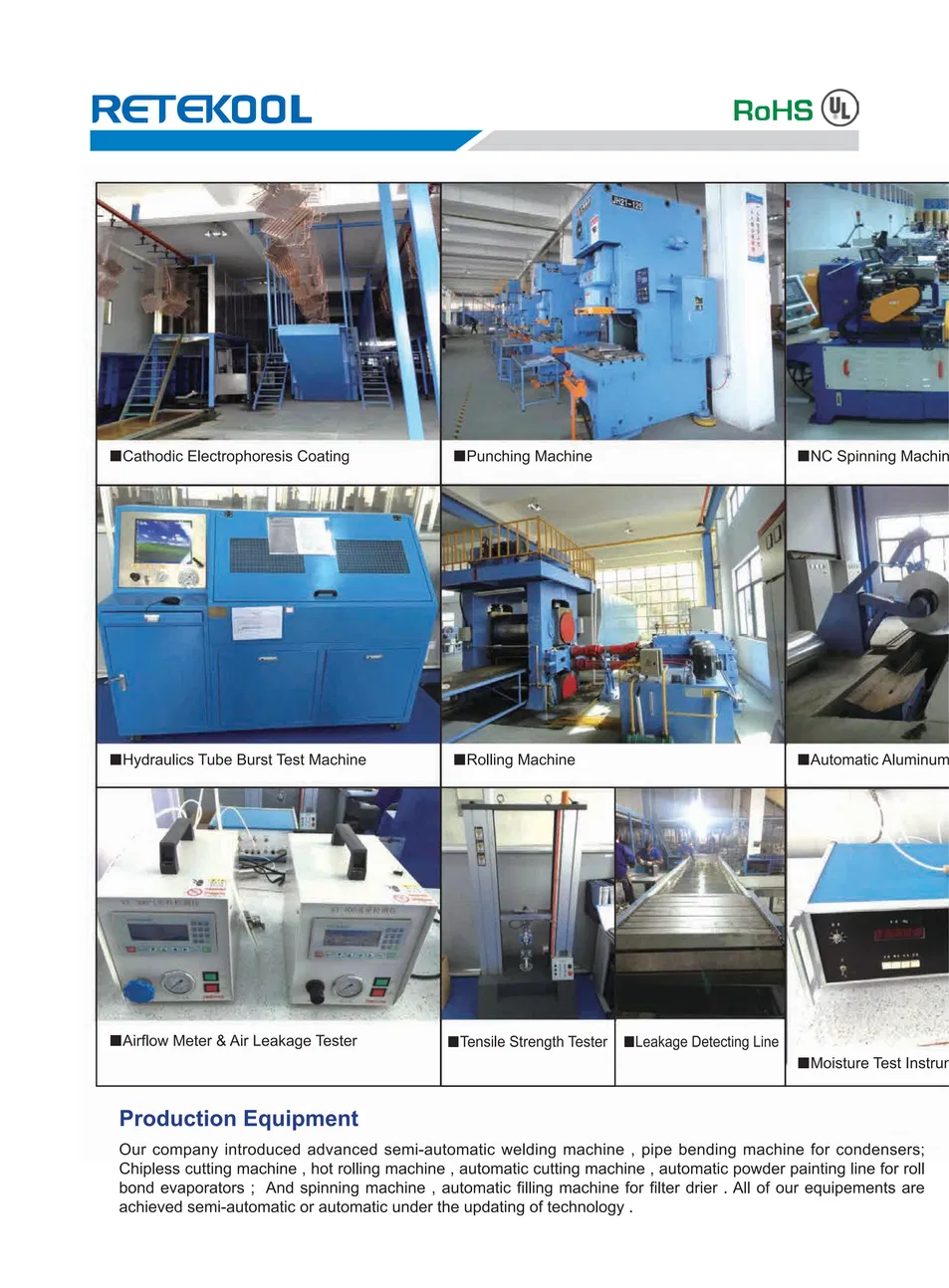

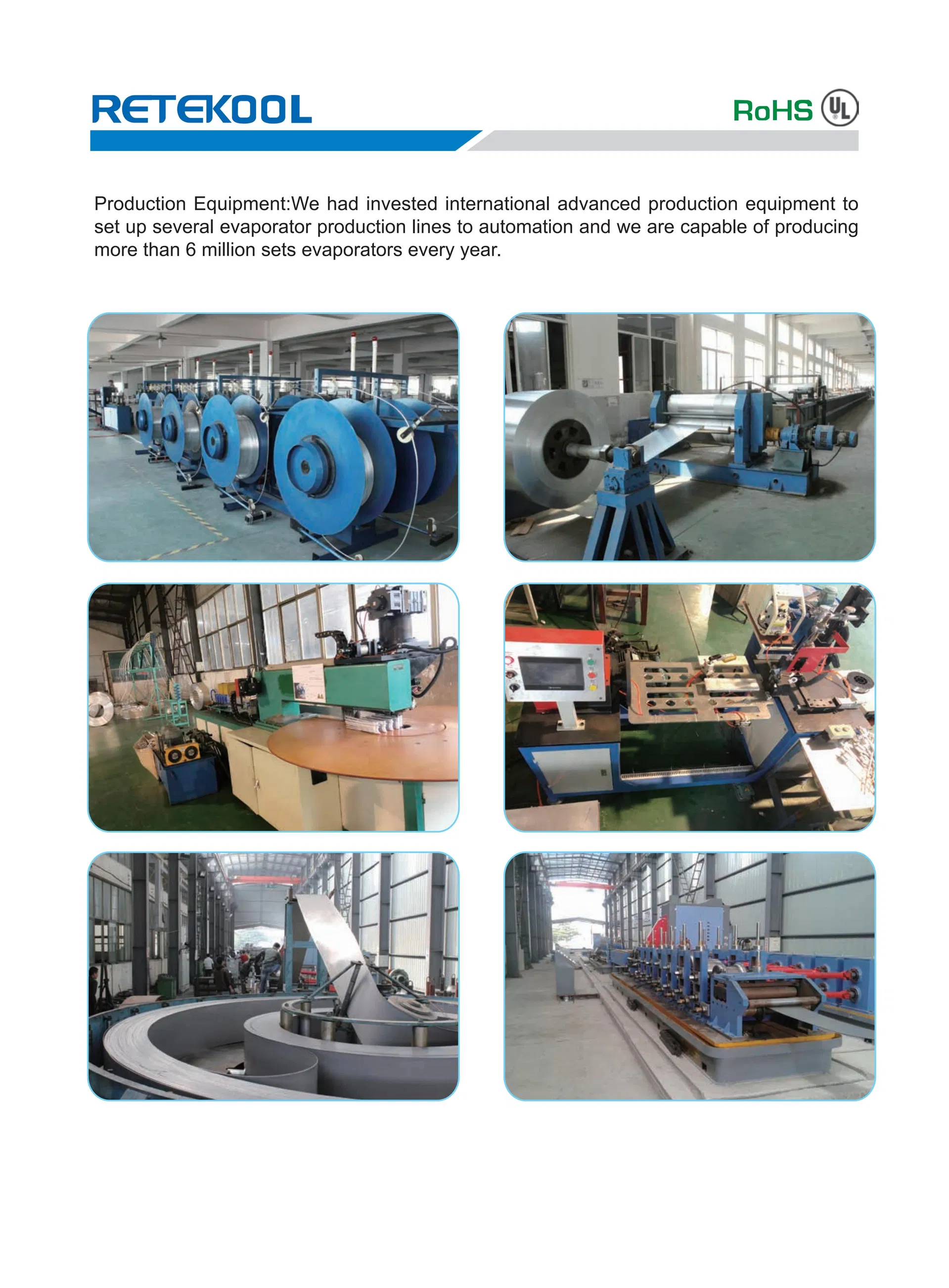

Manufacturing Capacity
Professional manufacturer of refrigeration spare parts for over 17 years, specializing in condensers, evaporators, filter driers, and thermostats. We utilize advanced design concepts for wire tube condensers and high-efficiency CO2 refrigerant condensers.
Annual Production Capacity:
Wire Tube Condenser: 6 Million Units
Roll Bond Evaporator: 3 Million Units
Aluminum Fins Condenser: 2.5 Million Units
Filter Drier: 6 Million Units
Certifications & Global Presence

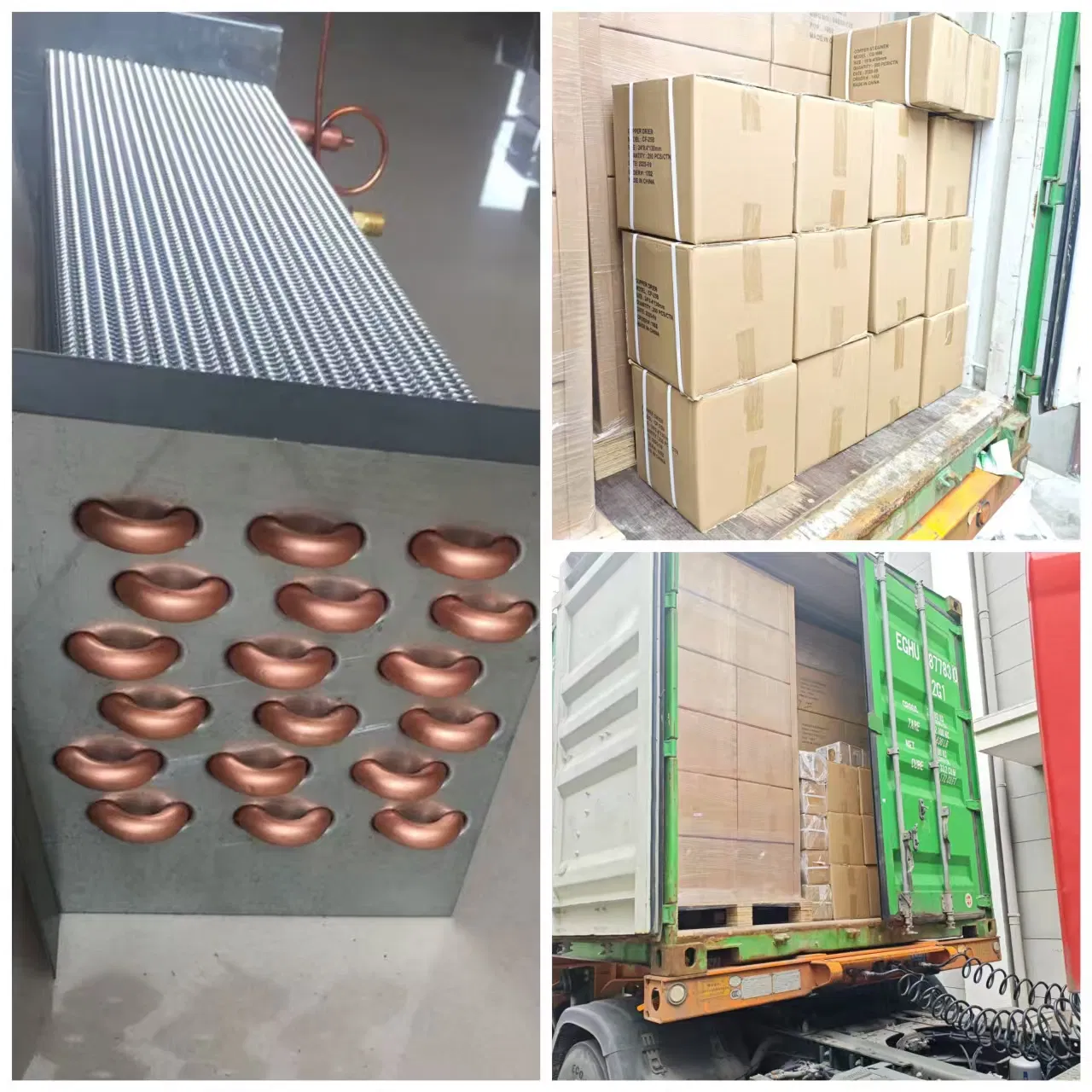

Packing & Logistic
Industry Exhibitions
Frequently Asked Questions
How do you guarantee product quality?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure high standards.
What refrigeration parts can I purchase from you?
You can source high-quality Condensers, Evaporators, Thermostats, Heat Exchangers, and Filter Driers directly from our factory.
Why should I choose your company over other suppliers?
Our professional engineers have many years of development experience. Our expert foreign trade managers help save time and shipping costs while avoiding exportation troubles.
What delivery terms and payment methods do you accept?
We accept FOB, CFR, CIF, EXW, CIP terms. Payments can be made via T/T, L/C, D/P, PayPal, or Western Union in various currencies including USD, EUR, and CNY.
What is the Minimum Order Quantity (MOQ)?
The MOQ depends on the specific item ordered, but it is normally 1000 pieces per order.

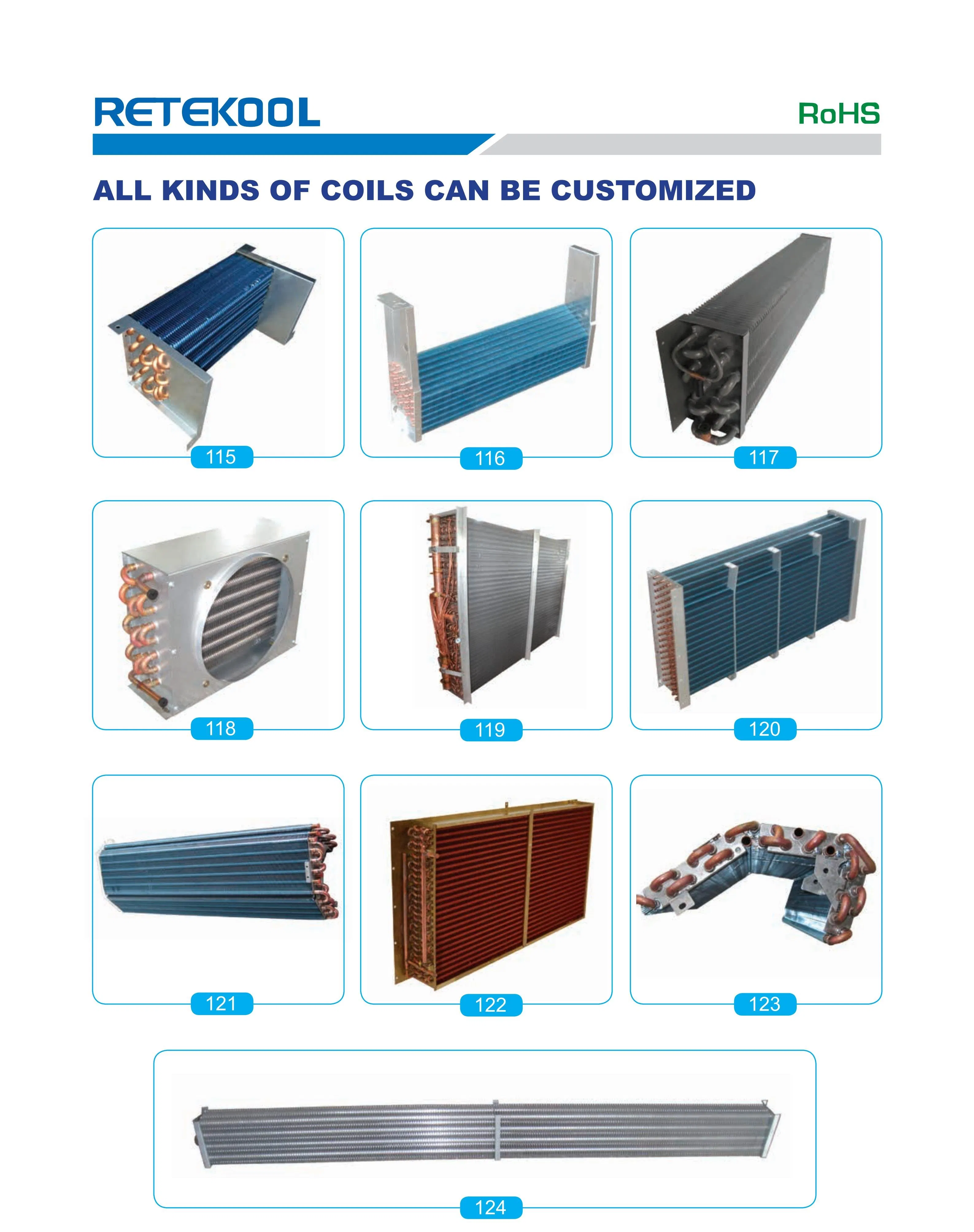

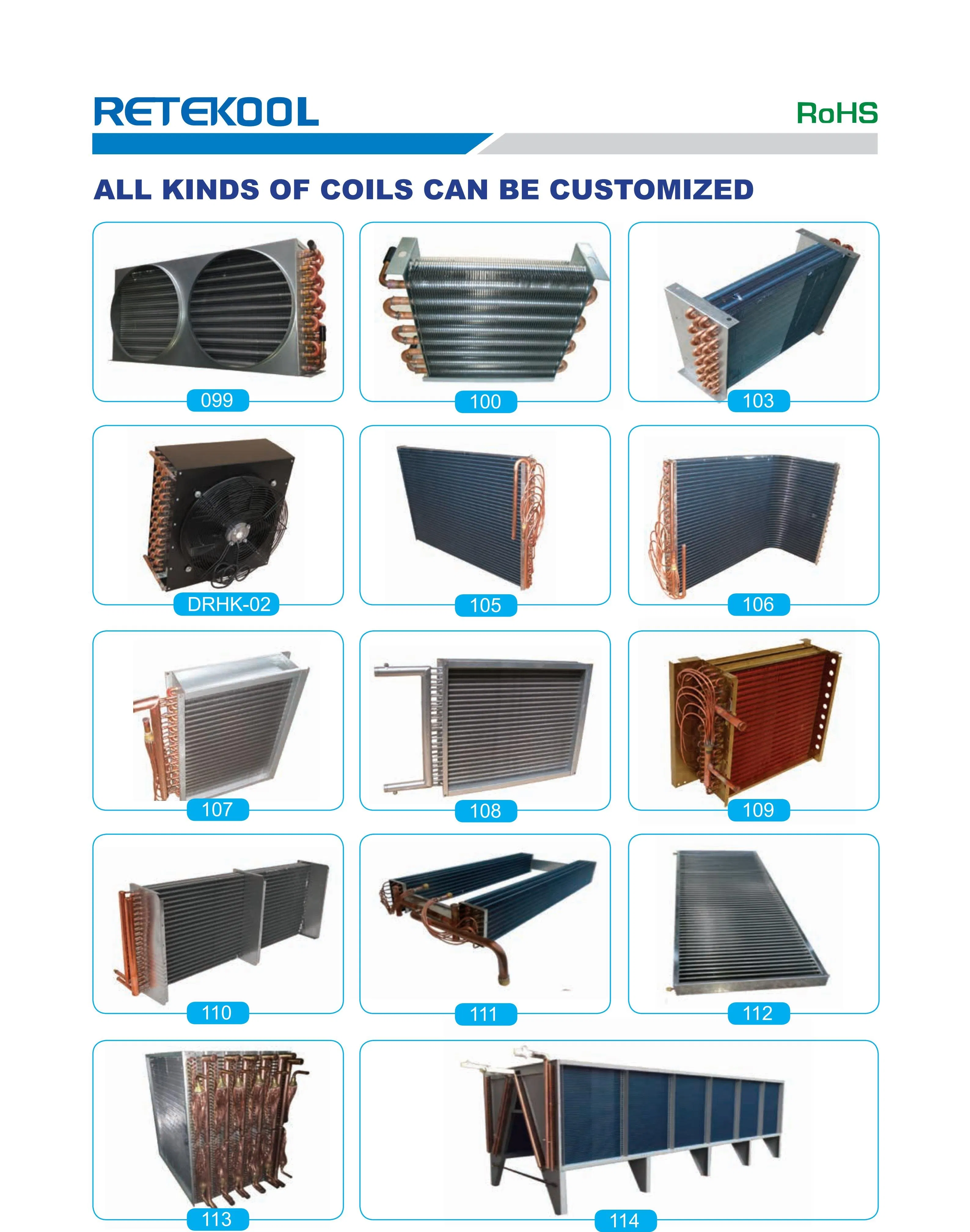

Do you accept product customization?
Yes, we accept full customization. While a mold fee may be required for specific designs, it can be returned once a specific order quantity is reached.
