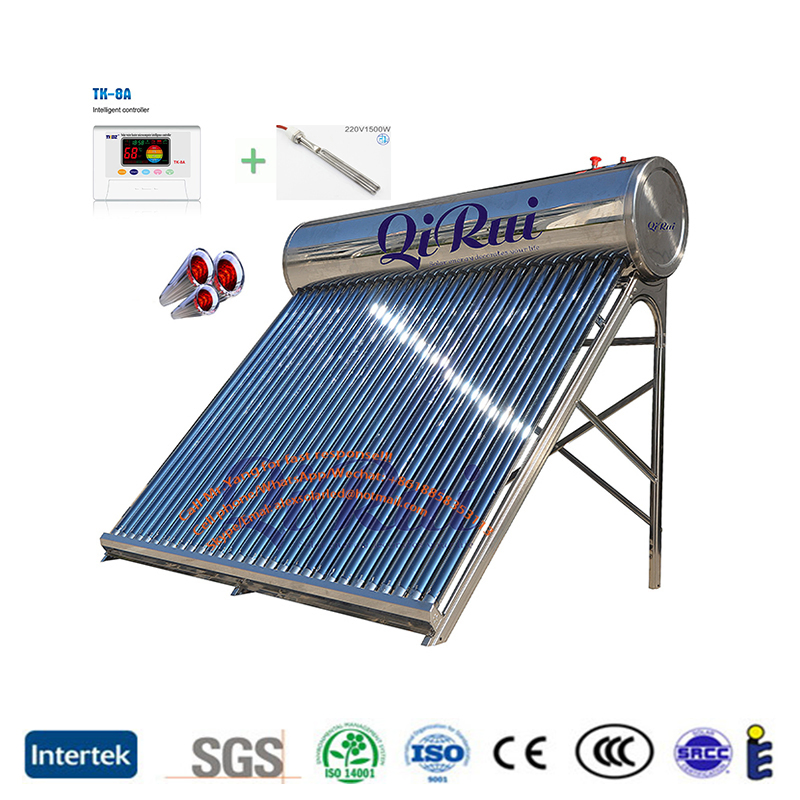

100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval
100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval
100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval
1 / 3
100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval
100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval
100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval

100L 200L 300L High Pressure Pre-Heated Solar Water Heater Boiler with CE Approval

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
150l 200l 240l 300l 400l 500l Vacuum Tube Solar Water Heater
All Stainless Steel Coil High Pressure Solar Hot Water Heating System
Model NO.
CPH-58
Structure
Compact Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector
Glass Vacuum Tube
Certification
CE, ISO9001, CCC
Heat Preservation
72 hours
Inner Tank
SUS304 or SUS316
HS Code
841919100
Capacity
50L to 500L
Quick Guidance & Features
  • ✔ Free brand/LOGO print based on bulk quantity
  • ✔ 1% free spare parts included
  • ✔ Factory audited by SGS, TUV and BV
  • ✔ Cheap and reliable high pressure hot water solution
  • ✔ Simple structure, easy to assemble and install
  • ✔ Strong wind, snow and hailstone resistance
Work Principle

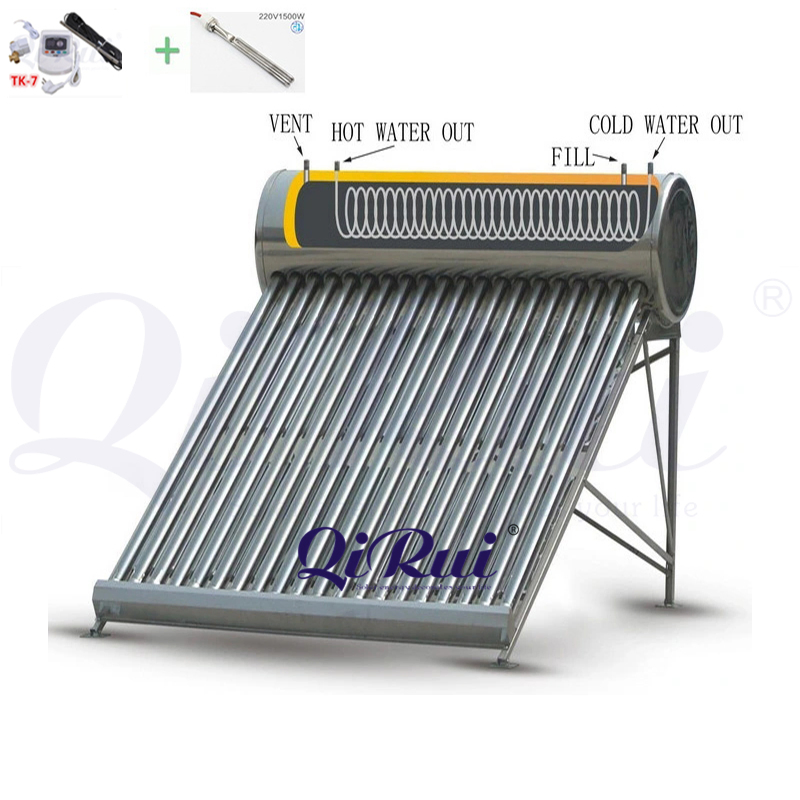

Working of Pre-Heated Compact Pressurized Copper Coil Solar Water Heater:

  1. Vacuum tubes absorb heat energy to heat the water in the storage tank.
  2. Copper coil is installed in the water tank as a high-efficiency heat exchanger.
  3. The water tank acts as a stable thermal source.
  4. When cold water flows into the copper coil, it absorbs heat from the tank water, providing instant hot water.
Solar Working Principle
Detailed Product Photos

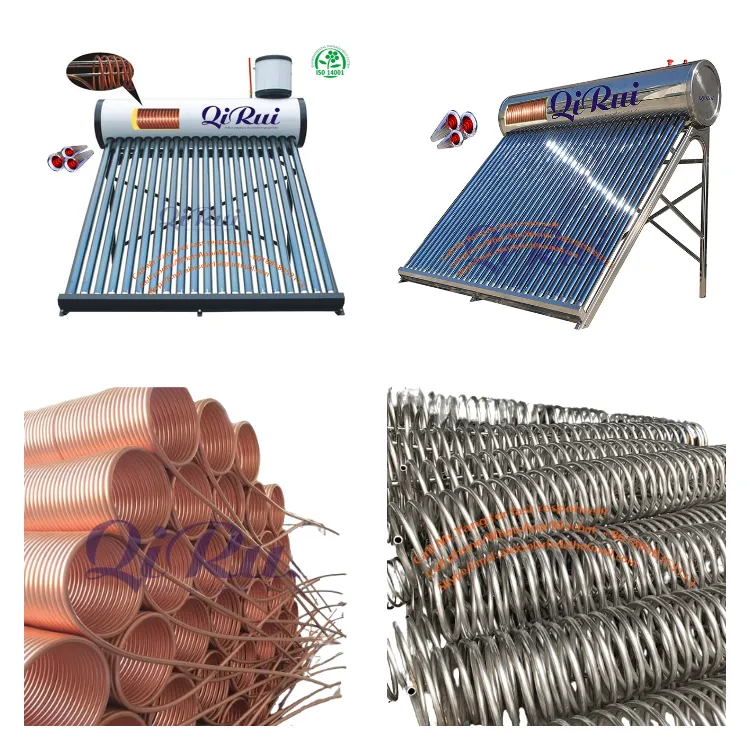

Solar Detail 1
Solar Detail 2
Technical Parameters

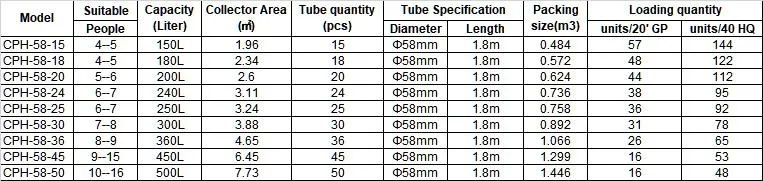

Specs Chart
Technical Specification Data
CAPACITY150 liter - 500 liter
Heat ExchangerCopper coil or stainless steel coil
Outer Tank Material0.4mm Galvanized steel / SUS201 / SUS304-BA
Inner Tank Material0.4mm SUS304-2B or SUS316 Stainless Steel
Insulation Layer50/55mm High-density polyurethane foam
Max Pressure0.6 Mpa / 87psi / 6bar
Glass Tube Thickness1.6mm
Absorption RateAs = 0.93 - 0.96 (AM1.5)
Seal MaterialStabilized high temperature silicon
WeldingAutomatic argon arc welding
Installation Instructions

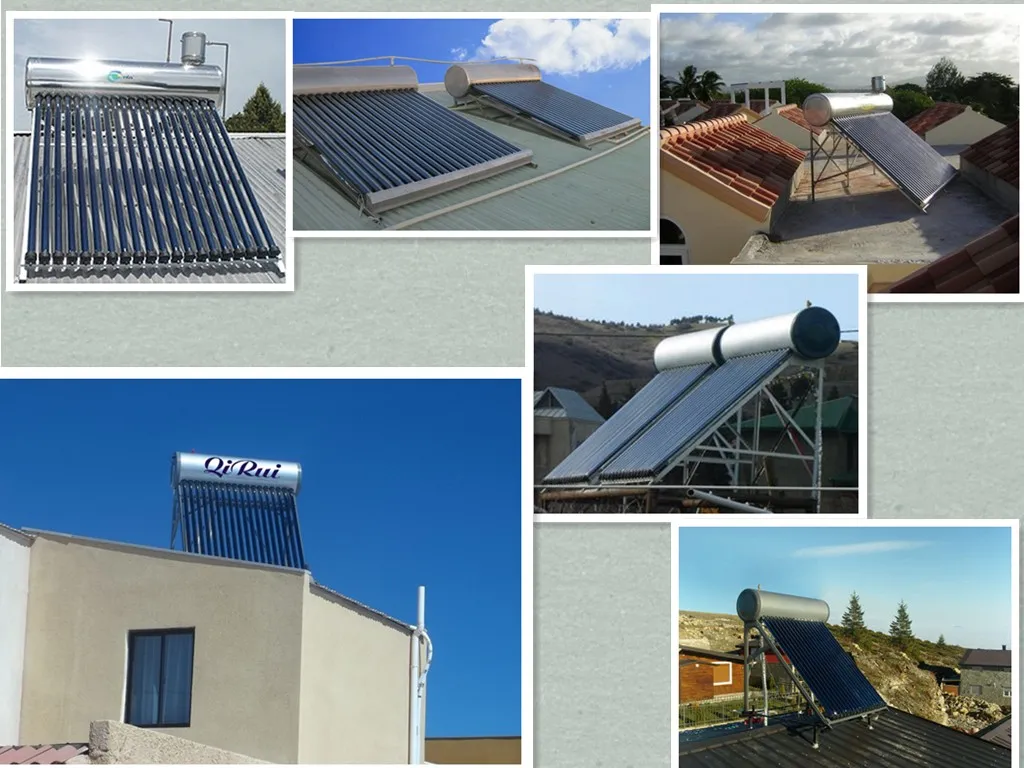

Versatile Application: Suitable for both Flat roof and Pitched roof installations.

Installation Diagram
Quality Control & Manufacturing

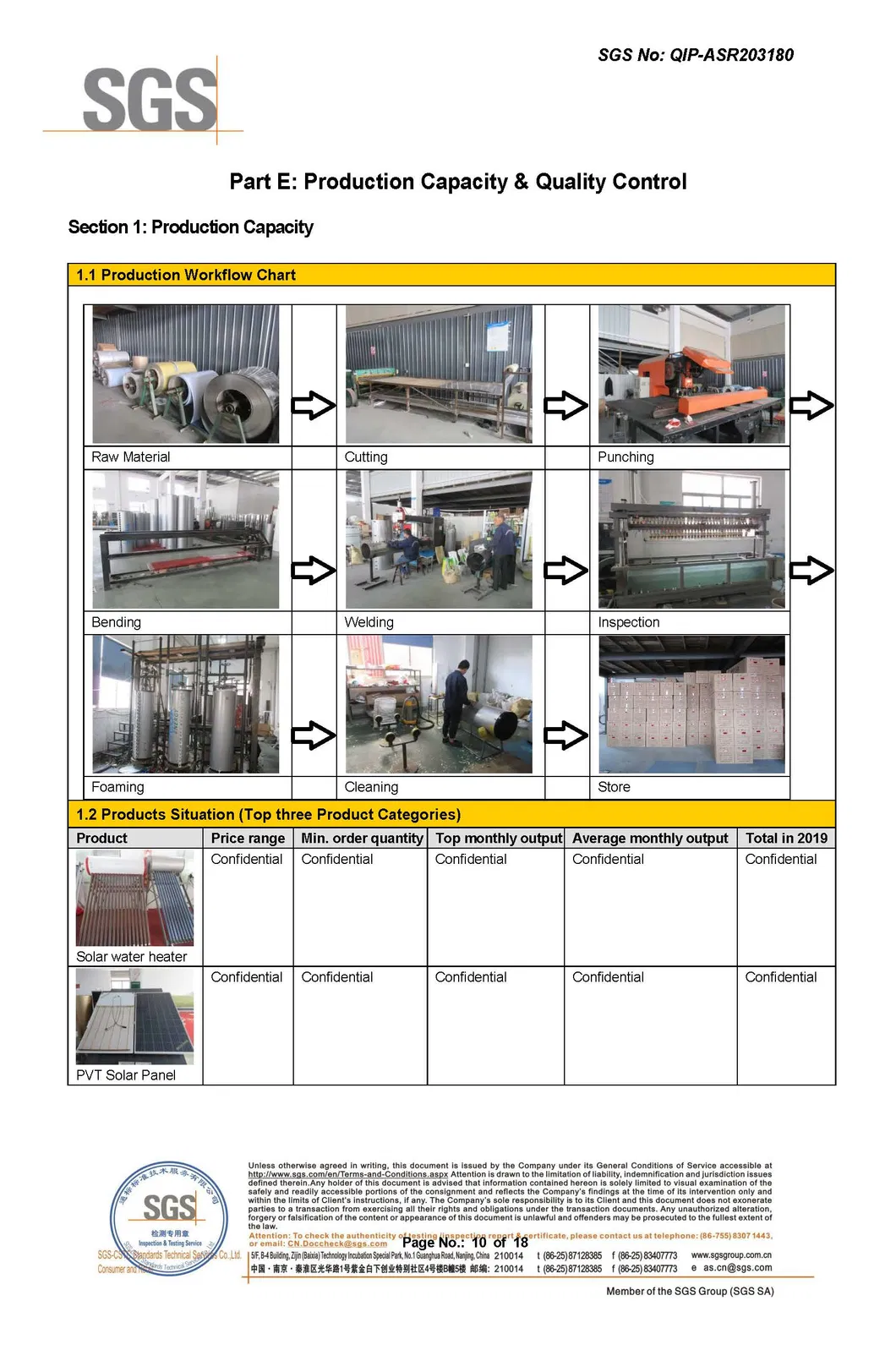

QC 1
QC 2
QC 3
QC 4
Frequently Asked Questions
Is solar water heating a viable alternative to gas or electricity?
Solar should be seen as a supplement. It cannot totally replace gas or electric as there are days with little sunlight. However, a correctly sized system can provide 60%-70% of a household's annual hot water needs.
How long will it take to recoup my investment?
Depending on your location and usage, the cost may be recouped as quickly as 4-5 years through reduced electricity or gas bills. You will make considerable savings over the lifespan of the heater.
Can these solar collectors be used in cold conditions?
Yes. Collectors can be used in temperatures as low as -30°C, although performance is reduced in extreme cold. Good heat output is still achieved in mild sub-zero conditions.
What happens if one of the tubes is broken?
Solar tubes are strong but can be replaced very easily if broken. The system can still operate with several broken tubes, though efficiency will decrease, so immediate replacement is recommended.
Will water be heated on a cloudy day?
Yes. Although output is reduced, the collector still provides heating on overcast days. If it is heavily clouded or raining, gas or electric boosting may be used to maintain temperature.
Is the system a fire hazard during hot, dry weather?
No. All components are high-temperature rated and non-flammable. Even during stagnation (pump off), the system will not catch fire. Most components are stainless steel, aluminum, and glass.
