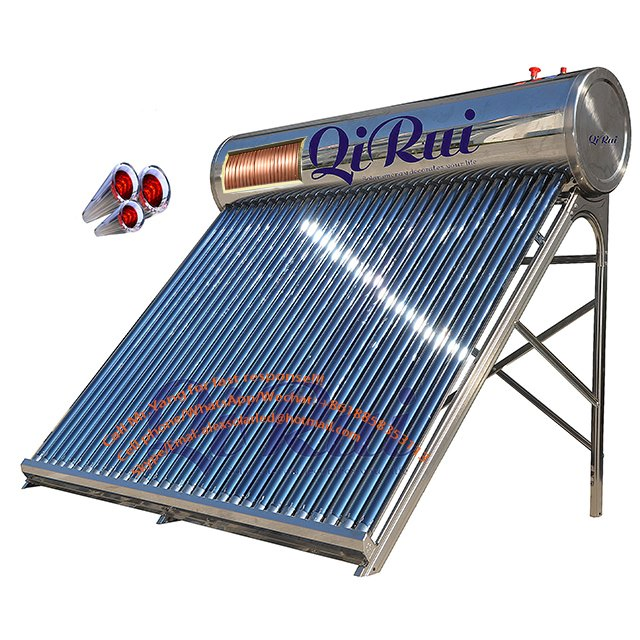

Best Stainless Steel Pressurized Solar Water Heater Systems 150L 200L 250L 300L 360L 400L 450L 500L for Global B2B Buyers

Basic Information

Model NO.:CPH-58

Structure:Compact Type

Pressure:Pressurized

Interior Material:Stainless Steel

Collector:Glass Vacuum Tube

Certification:CE, ISO9001, CCC

Preservation:72 hours

Tank Material:Color Steel, Stainless Steel

Capacity:50L to 500L

HS Code:841919100

Product Description

150L - 500L Vacuum Tube Solar Water Heater - Stainless Steel Coil High Pressure System

Quick Guidance

Free brand/LOGO print based on 20GP/40HQ quantity
1% free spare parts included
Audited by SGS, TUV and BV
Shipping Ports: Shanghai or Ningbo
Certificates: Europe Solar Keymark EN12976/CE/CCC/ISO9001/ISO14001/ ISO45001

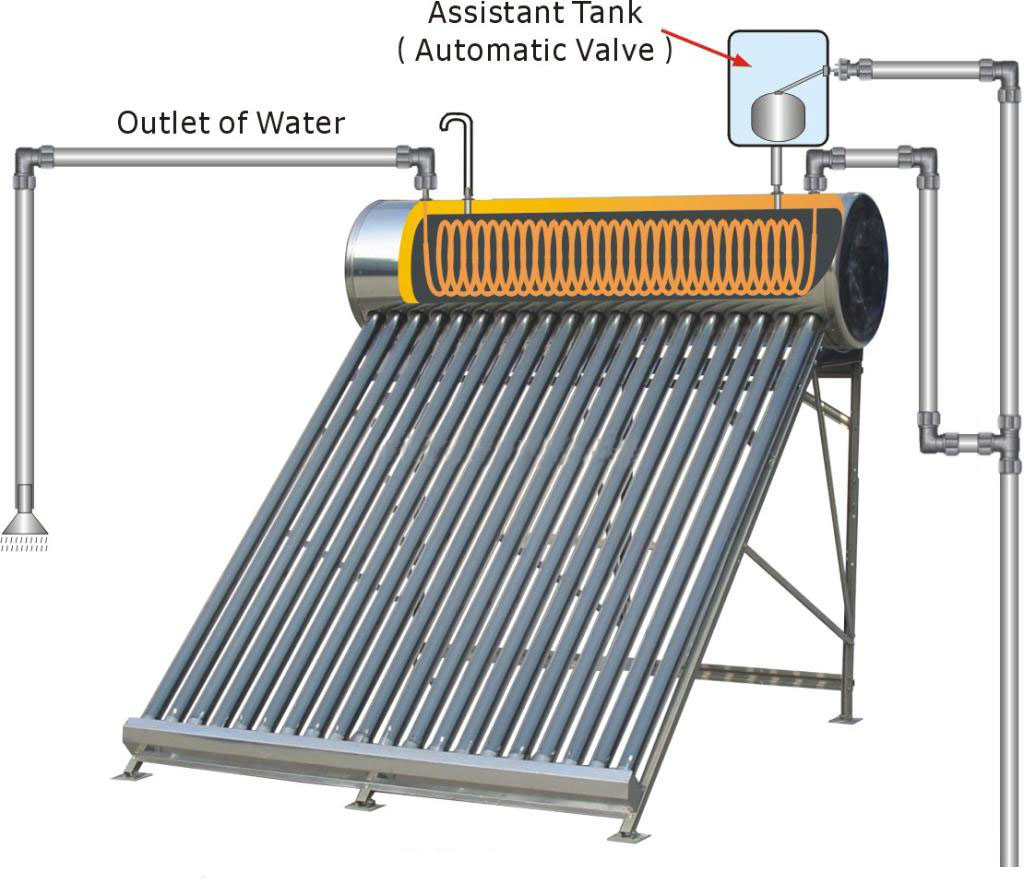

Working Principle

Pre-Heated Compact Pressurized Copper Coil Mechanism:

Vacuum tubes absorb heat energy to heat the water in the storage tank.
A copper coil is installed in the water tank as a high-efficiency heat exchanger.
The water tank acts as a stable thermal source.
When water flows into the copper coil, it absorbs heat from the water in the tank, providing instant hot water.

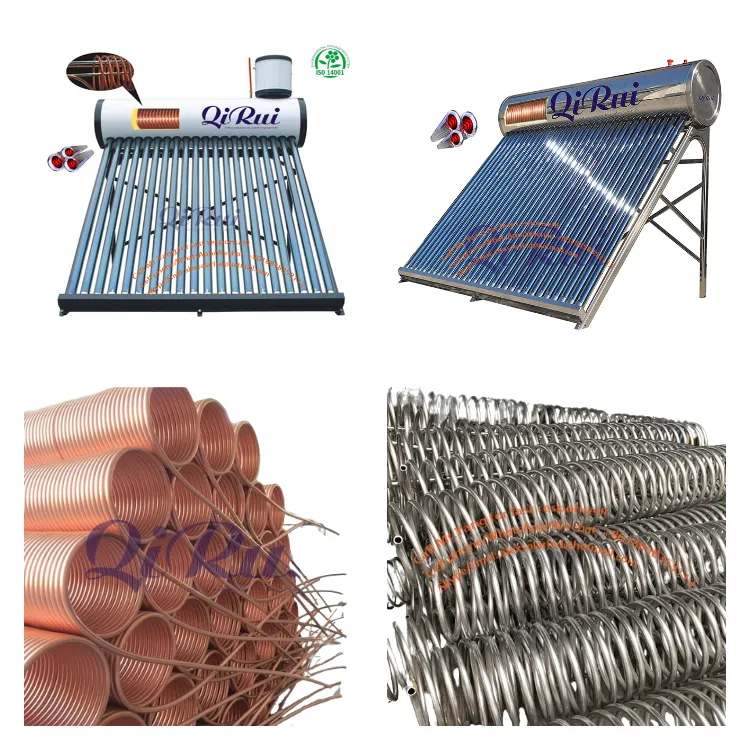

Detailed Photos

Key Features

Economical and reliable high-pressure hot water solution.
Simple structure for easy assembly and installation.
Highly resistant to strong wind, snow, and hail.
Fresh Water System: Uses a heat exchanger so you always have fresh, running hot water.
Pressurized Performance: Ensures a comfortable and powerful shower experience.

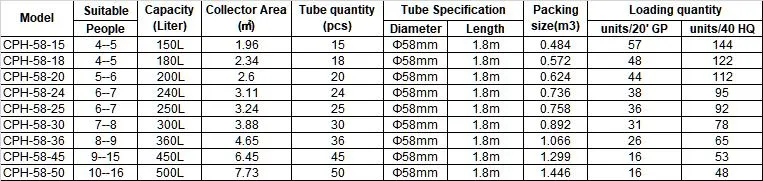

Product Parameters

Technical Parameter	Specification
CAPACITY (TUBES-LITER)	150 liter - 500 liter
Heat exchanger	Copper coil or stainless steel coil
Material of Outer Tank	0.4mm Galvanized steel / SUS201 / SUS304-BA
Material of Inner Tank	0.4mm SUS304-2B or SUS316 Stainless Steel
Insulating Layer	50/55mm High-density polyurethane foamed
Max Pressure	0.6 Mpa / 87psi / 6bar
Solar Collector Tube	3.3 Borosilicate glass with High-Efficiency Coating
Welding	Automatic argon arc welding
Option 1	Assistant tank (3L-50L) for automatic watering
Option 2	Electrical heater with intelligent controller

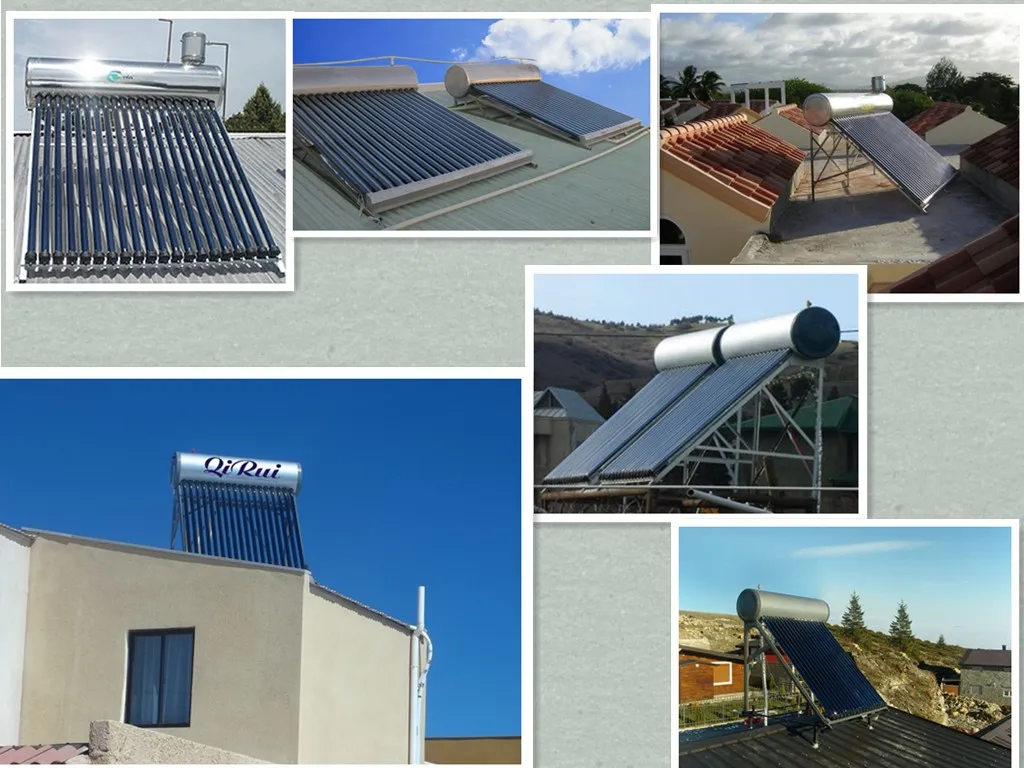

Installation Instructions

Versatile design suitable for both Flat roofs and Pitched roofs.

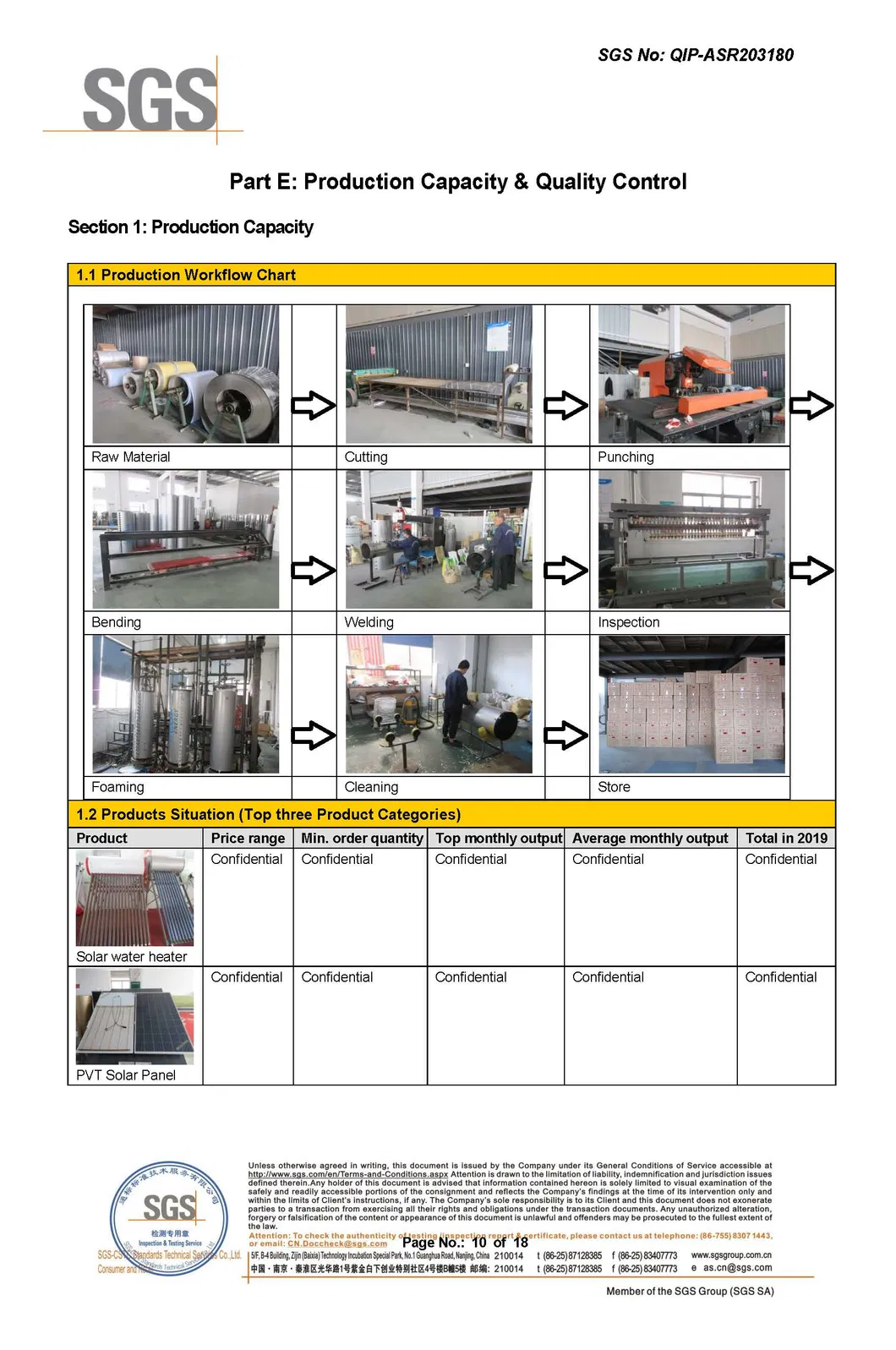

Quality Control & Services

Our Service Advantages

Fast Delivery: 40ft container orders delivered within 7 days.
Expert Support: Experienced sales team for rapid technical confirmation.
Market Experience: Customized designs tailored for different global markets.
Logistic Assistance: Help with loading consolidated goods.
Support: Full installation guides and technical training provided.

Frequently Asked Questions

1. Is solar water heating a viable alternative to gas or electricity?

Solar is a supplement that can provide 60%-70% of a household's hot water needs annually. The system can be automated to ensure hot water availability regardless of sunlight levels.

2. How long will it take to recoup my investment?

Depending on location and usage, the cost may be recouped as quickly as 4-5 years through reduced electricity or gas bills.

3. Can the solar collectors be used in cold conditions?

Yes, these collectors can operate in temperatures as low as -30°C, though performance is naturally higher in milder conditions.

4. What happens if one of the tubes is broken?

Tubes are durable but easily replaceable if damaged. The system can still operate with several broken tubes at reduced efficiency.

5. Will water be heated on a cloudy day?

Yes. While output is reduced on overcast days, the system still provides heating. Electric or gas boosting handles requirements on heavily raining days.

6. Can I use a solar collector with my existing hot water system?

Normally yes. Retrofit valves allow connection to existing cold water inlets or a pre-heating tank can be added to the circuit.
