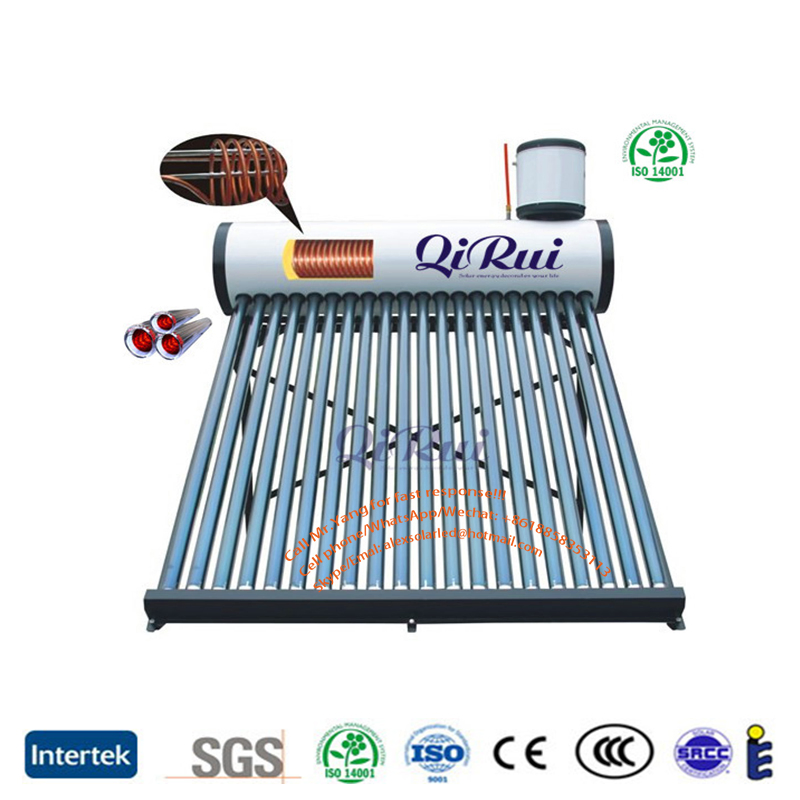

Roof Mounted 150L-360L Vacuum Tube Pressurized Solar Hot Water System

1 / 5

Roof Mounted 150L-360L Vacuum Tube Pressurized Solar Hot Water System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Overview

Structure

Compact Type

Pressure

Pressurized

Interior Material

Stainless Steel

Collector Components

Glass Vacuum Tube

Composition

Bracket

Certification

CE, ISO9001, CCC

Heat Preservation

72 hours

Outer Tank Material

Color Steel, Stainless Steel

Inner Tank Material

SUS304 or SUS316

Specification

50L to 500L

Origin

China

HS Code

841919100

Product Description

Vacuum tube solar water heater - All stainless steel Coil High pressure solar hot water heating system (150L - 500L)

Quick Guidance

Free brand/LOGO print based on bulk quantities
1% free spare parts provided
Audited factory production standards
Global certifications: EN12976, CE, CCC, ISO9001, ISO14001

Working Principle

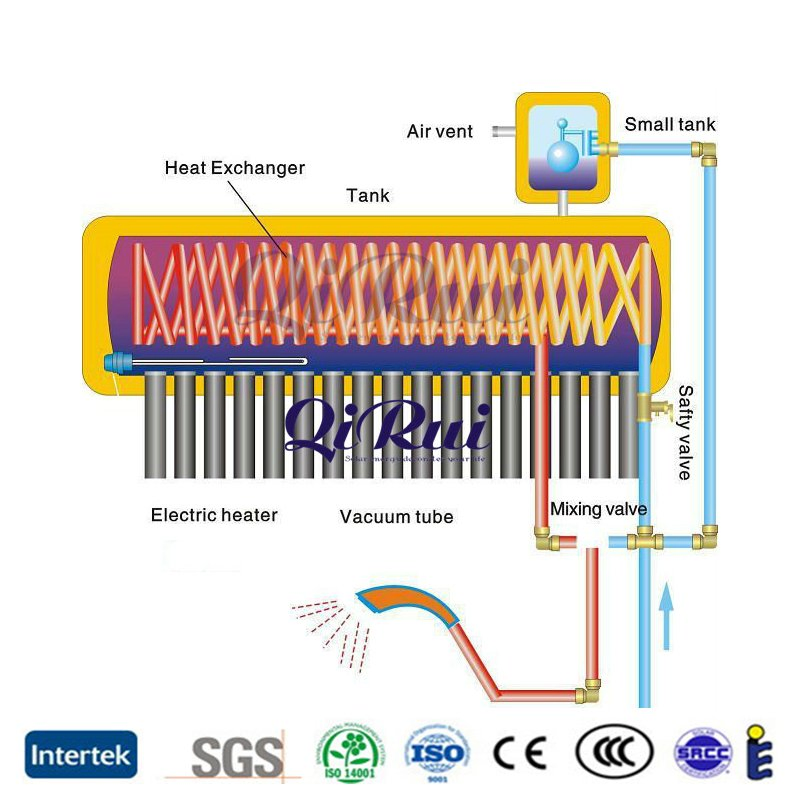

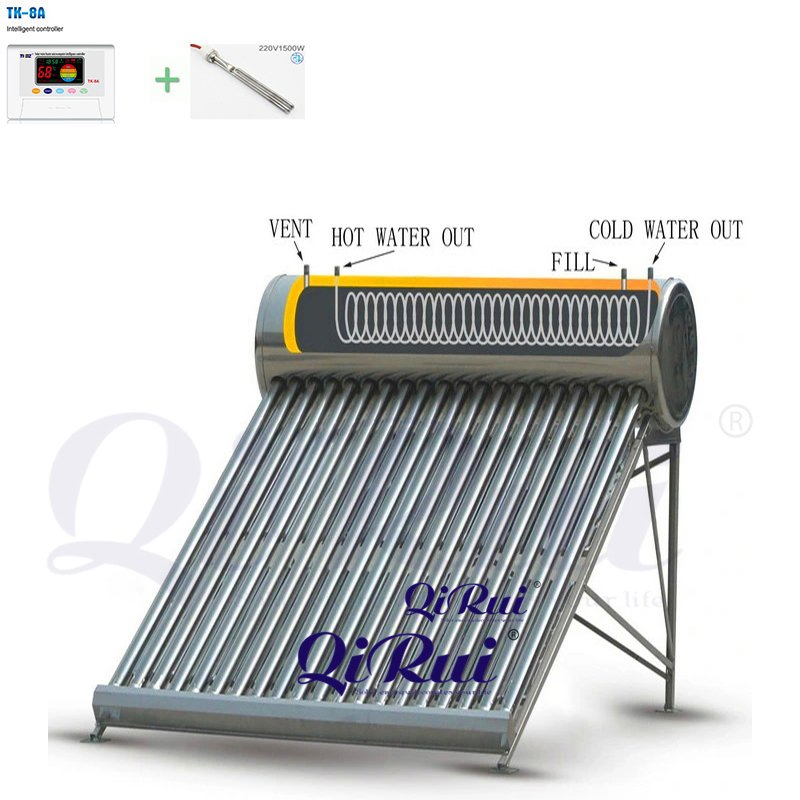

How the Pre-Heated Compact Pressurized Copper Coil Works:

Vacuum tubes absorb heat energy to heat the water in the storage tank.
A copper coil is installed in the water tank as the heat exchanger.
The water tank acts as a thermal source.
When water flows through the copper coil, it absorbs heat from the tank water, providing instant hot water.

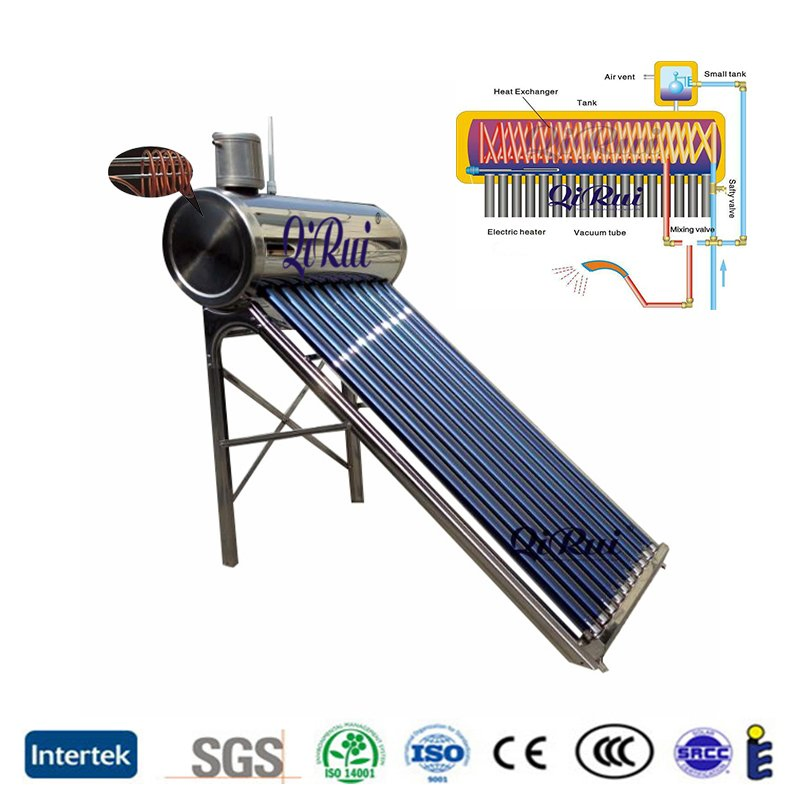

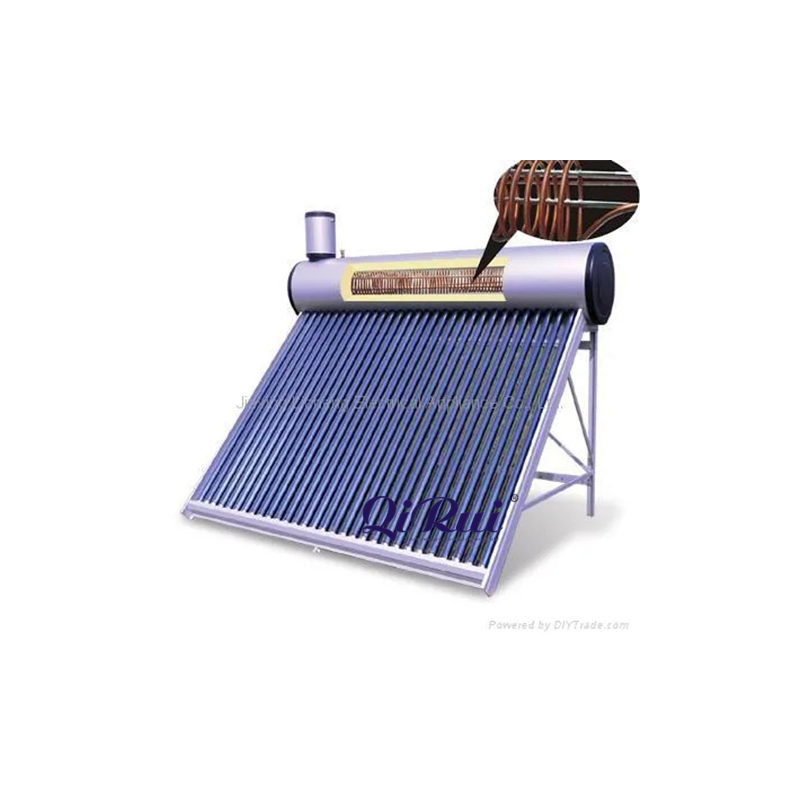

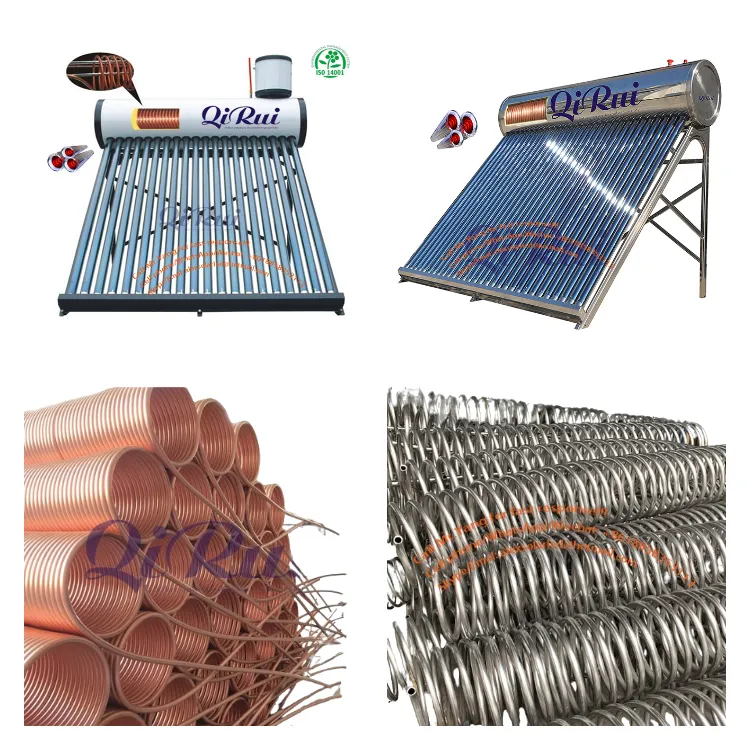

Detailed Photos

Key Features

Cost-effective and reliable high-pressure hot water solution.
Simple structure for easy assembly and installation.
Highly resistant to strong wind, snow, and hail.
Fresh Water: Uses a heat exchanger so you always have fresh, flowing hot water.
Pressurized Flow: Ensures a comfortable and powerful shower experience.

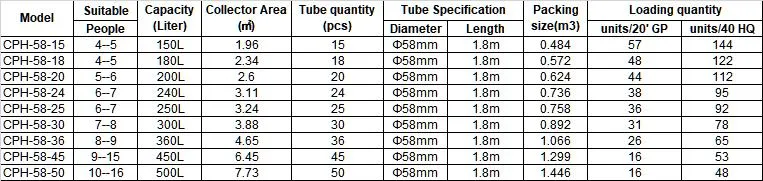

Product Parameters

Technical Specifications
Capacity Range	150 Liter - 500 Liter
Heat Exchanger	Copper coil or stainless steel coil
Outer Tank Material	Galvanized steel / SUS201 / SUS304-BA (0.4mm)
Inner Tank Material	SUS304-2B or SUS316 Stainless steel (0.4mm)
Insulation Layer	50/55mm high-density polyurethane foam
Max Pressure	0.6 Mpa / 87psi / 6bar
Collector Tube	3.3 Borosilicate glass with AL/AL-ALN/ALN coating
Tube Thickness	1.6mm
Average Heat Loss	Ult=0.6~0.7w/(m2.c)
Bracket Material	Stainless steel / Aluminum alloy / Galvanized steel

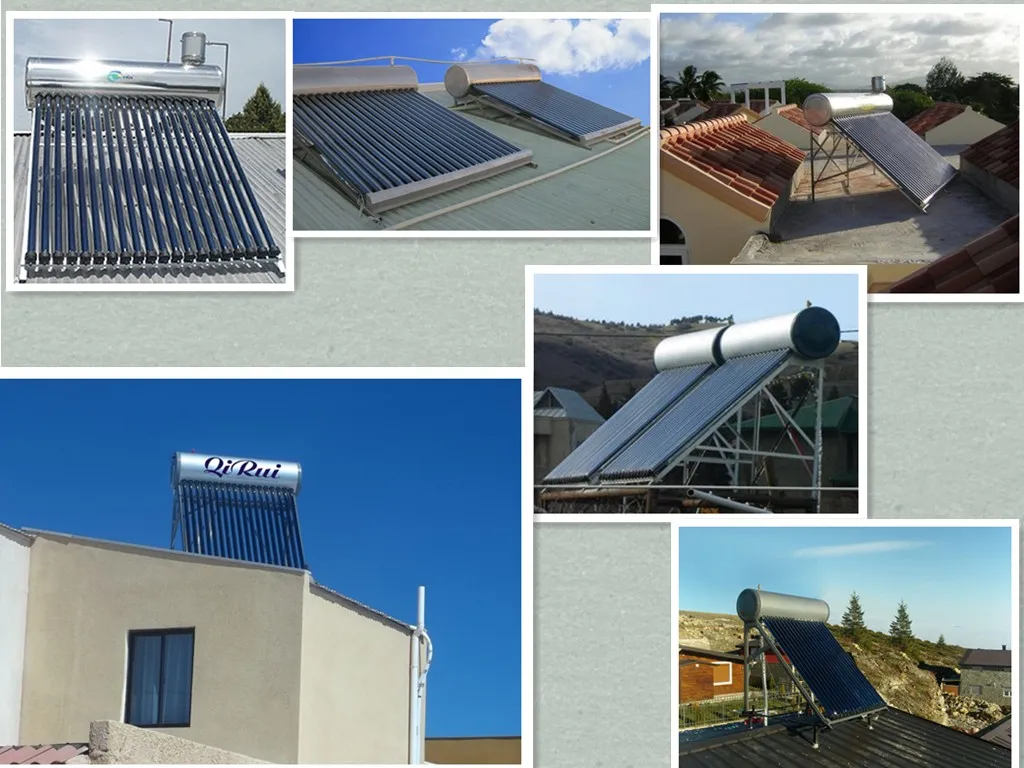

Installation Instructions

Suitable for both Flat roofs and Pitched roofs.

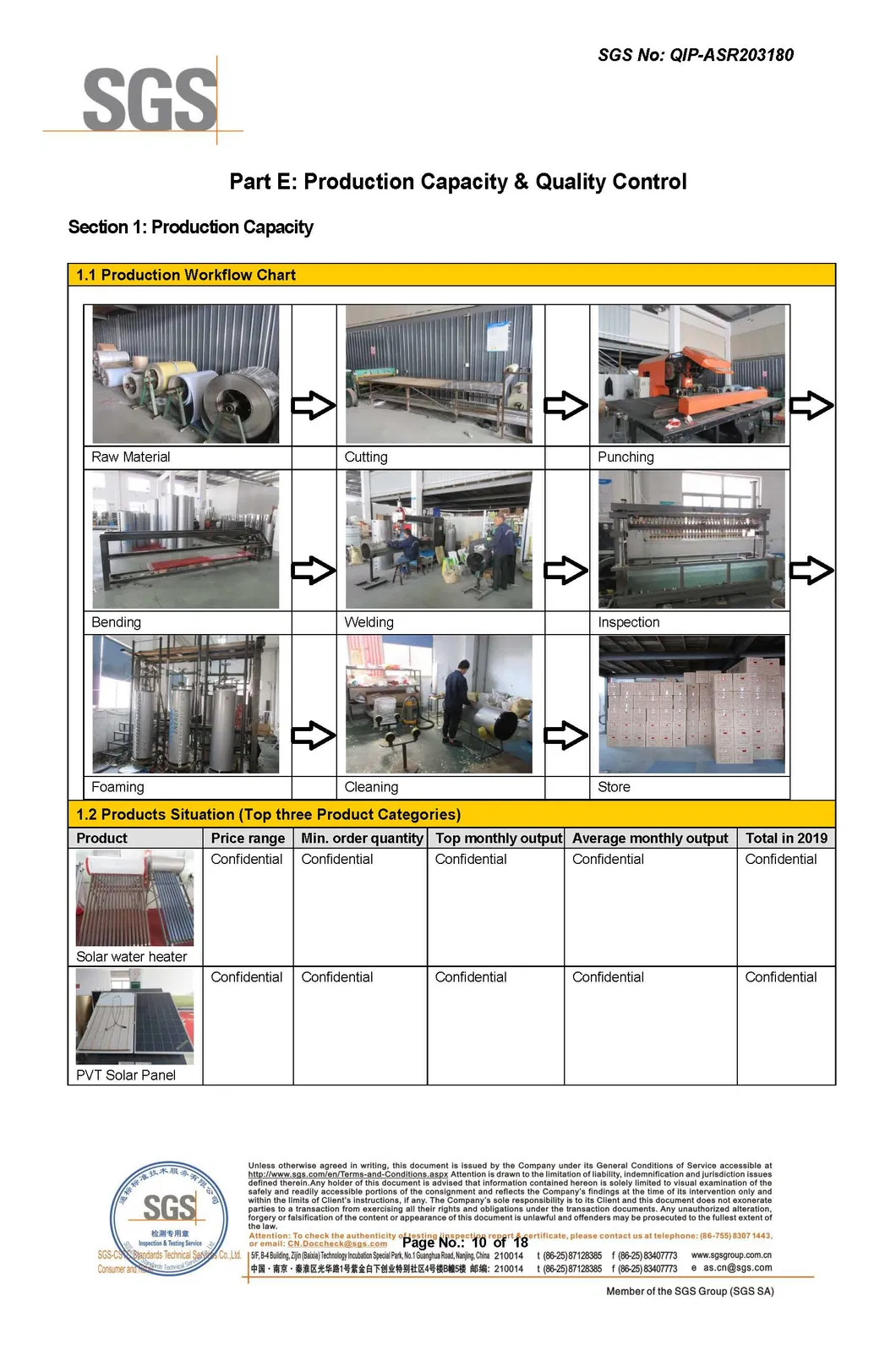

Quality Control & Service

Our Services

Fast delivery: 40ft containers delivered within 7 days.
Experienced sales assistance and technical support.
Rich experience in diverse international markets.
Comprehensive installation guidance and training.
Customized branding and packaging options.

Frequently Asked Questions

1. Is solar water heating a viable alternative to gas or electricity?

Solar is a supplement that can provide 60%-70% of a household's hot water needs annually. It is often automated to guarantee hot water regardless of sunlight levels.

2. How long will it take to recoup my investment?

Depending on location and usage, the cost may be recouped as quickly as 4-5 years through reduced energy bills.

3. Can the solar collectors be used in cold conditions?

Yes, they can operate in temperatures as low as -30°C, though performance is naturally reduced in extreme cold compared to mild conditions.

4. What happens if one of the tubes is broken?

Tubes are durable but easily replaceable if damaged. The system can continue to operate even with a broken tube, though efficiency will decrease.

5. Will water be heated on a cloudy day?

Yes. While heat output is lower on overcast days, the system still provides heating. Automated backup heating can maintain desired temperatures when needed.

6. Can I use a solar collector with my existing hot water system?

Normally yes. Retrofit valves can often connect solar to your existing cold water inlet or a pre-heat storage tank can be installed.
