Certificates: CE, BV, SGS, CCS, ISO9001, Vessel CCS
After-Sales Service: 15-year guarantee for structural parts of center body; 1-year guarantee for the complete pump unit.
Application Areas: Chemical, Coating, Painting, Dye, Pigment, Textile, Food Industry, Water Treatment, Petroleum, Environmental Protection, and Pharmaceutical industries.

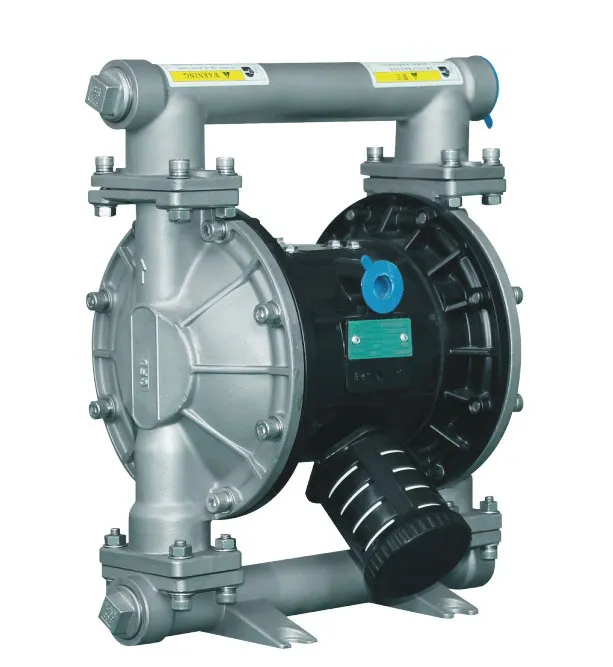

| Type | RD25 - SS |
| Inlet / Outlet Size | 1" |
| Air Inlet Size | 1/2" |
| Suction Lift (dry) | 5m |
| Max. Working Pressure | 7bar, 0.7MPa |
| Max. Flow Rate | 150L/min (9.0m³/h) |
| Max. Delivery Lift | 70m |
| Max. Grain Diameter | 4mm |
| Weight | 18kgs |
| Body Material | Stainless Steel 304 / 316 |
Our pneumatic diaphragm pumps use compressed air as a power source, representing the most advanced diaphragm pump technology available. Featuring a three-way air pilot valve, the system achieves a true "no dead stop" state and faster reversing. Compared to traditional pumps, these units offer larger flow rates, more stable operation, and smaller pulsation.
Available Materials:
Inlet/Outlet Sizes: Range from 1/4" to 3"
Connection Types: Threaded connection (Plastic & Metal pumps) and Flanged connection (Plastic pumps 1/2" to 3").
